ilShinBioBase

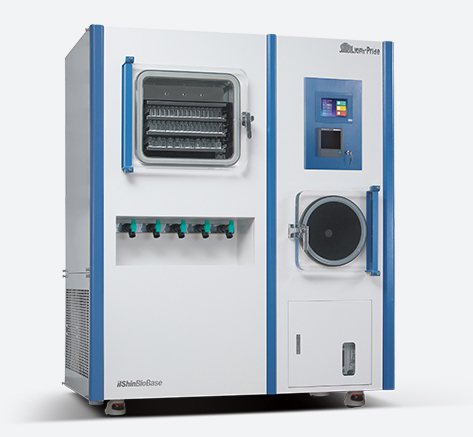

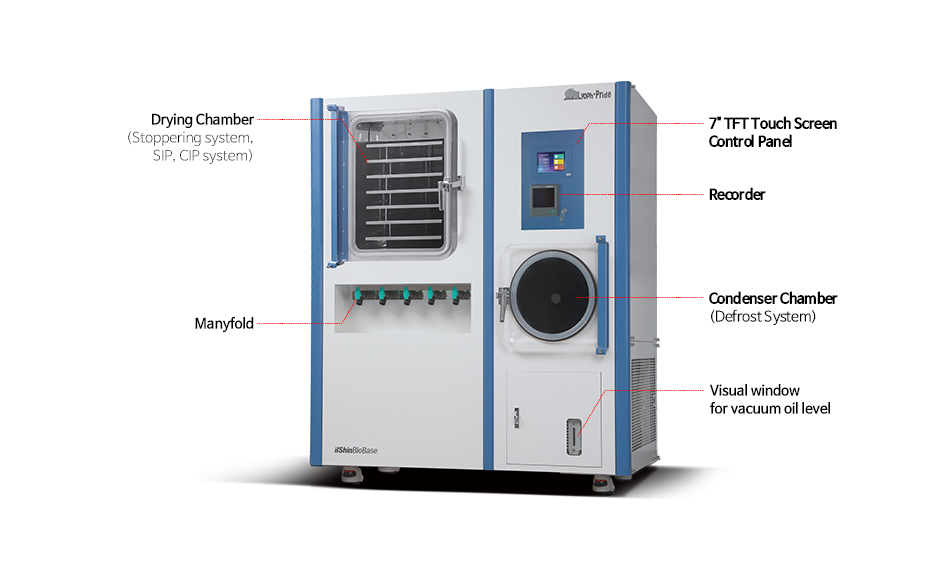

LP10~30

Freeze Dryer
For Pharmaceutical & Bio/Food Industry 10 to 30 Liter/Batch

Free Demo Request
Brochures
More Info

Specifications

Ice Capacity
LP 03 : 3 L.
LP 10 : 10 L.
LP 20 : 20 L.
LP 30 : 30 L.
Condenser Temperature
LP 03 : -85℃
LP 10 - 20 - 30 : -85℃ (-120℃)
Shelf Temperature
-55℃ + 50℃
Shelf Areas
LP 03 : 0.2m2 (0.1m2 /EA)
LP 10 : 0.6m2 (0.1m2 /EA)
LP 20 : 1.2m2 (0.2m2 /EA).
LP 30 : 1.8m2 (0.2m2 /EA)
Shelf Quantity
LP 03 : 2+1
LP 10 : 3+1
LP 20 : 6+1
LP 30 : 9+1
Shelf Dimensions
(WxDxH mm)
LP 03 : 270 x 340 x 16
LP 10 - 20 - 30 : 400 x 500 x 18
Ext. Dimensions
(WxDxH mm)
LP 03 : 700х765х865
LP 10 : 1490x910x1700
LP 20 : 1580x1085x1950
LP 30 : 1810x1456x1995
Electrical
LP 03 :220V 3Ph 50/60 Hz
LP 10 - 20 - 30 :380/220V 3Ph 50/60Hz
Refrigeration System
LP 03 : 1.25HP x 1EA
LP 10 : 2HP x 2EA
LP 20 : 3HP x 2EA
LP 30 : 5HP x 2EA
Vacuum vol. (LPM)
LP 03 : 196
LP 10 : 416
LP 20 : 648
LP 30 : 841
Manifold Service Port
LP 03 : (4EA)
LP 10 : 5EA
LP 20 : 4EA
LP 30 : -
Serum Bottle & Vial Capacity of the Stoppering LP10 to 30
Bottle Size
LP 03 - LP 10 - LP 20 - LP 30 : 5ml. - 10ml. - 30ml.
Shelf Capacity
LP 03 : 230/5ml - 190/10ml - 102/30ml
LP 10 - 20 - 30 : 500/5ml - 413/10ml - 222/30ml
No. of Shelf
LP 03 : 2+1/5-10-30ml
LP 10 : 3+1/5-10-30ml
LP 20 : 6+1/5-10-30ml
LP 30 : 9+1/5-10-30ml
Total Capacity
LP 03 : 460/5ml - 380/10ml - 204/30ml
LP 10 : 1,500/5ml - 1,500/10ml - 1,240/30ml - 667/30ml
LP 20 : 3,000/5ml - 2,479/10ml - 1,333/30ml
LP 30 : 4,500/5ml - 3,719/10ml - 2,000/30ml
Show more

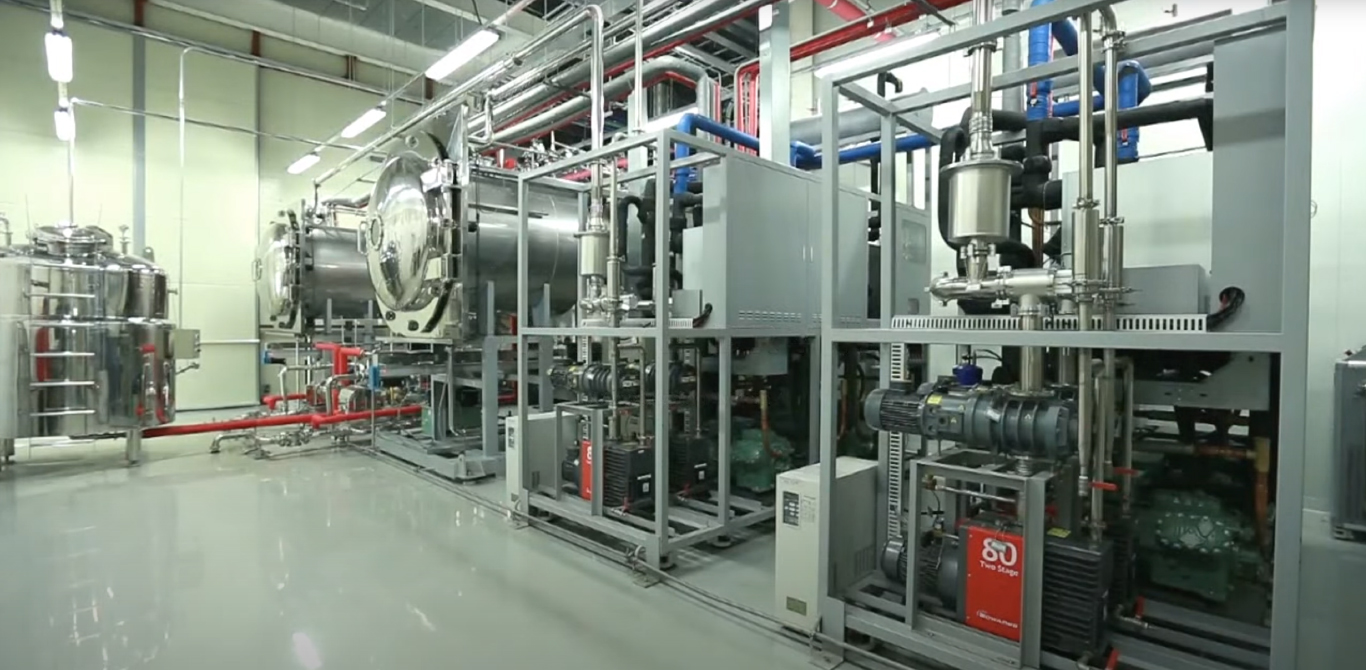

WATCH THE VIDEO

Recommended Products

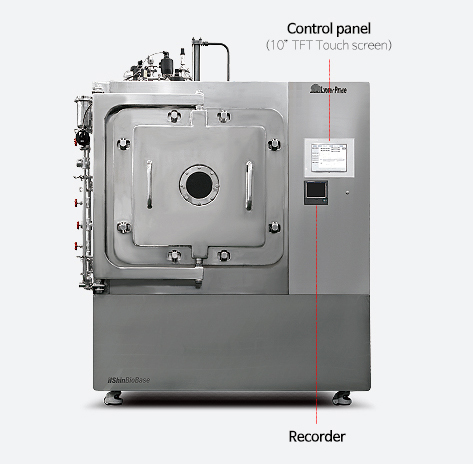

LP50~300
