Systec

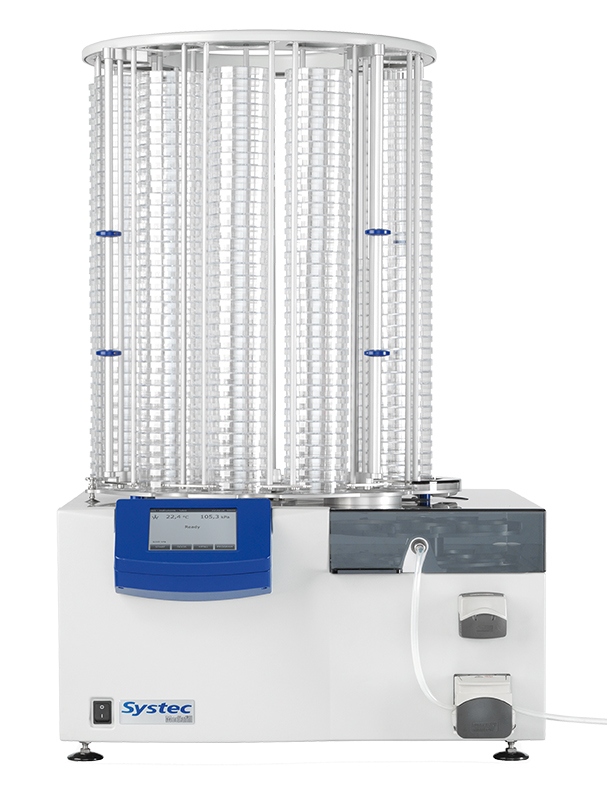

Mediafill

Stack 220, Stack 440, Stack 660

Broşürler
Daha Fazla Bilgi

Özellikler

Dimensions and performance

Mediafill
Stack 220
Stack 440
Stack 660
Length (mm)
683
Width (mm)
662
Height (mm)
348
Diameter (mm)
566
566
566
Overall height (mm)
730
1094
1444
Max. stack height for Petri dishes (mm)
345
682
1030
Petri dish diameter (mm)
90
90
90
Petri dish height (mm)
12 to 26
12 to 26
12 to 26
Capacity (Petri dish height 16.5 mm)
220
440
660
Weight (kg)
- Mediafill
37.5
- Stacker (without Petri dishes)
6.9
9
14.3
- Additives pump (optional)
0.5
- Peltier cooling (optional)
1.7

Pump

Filling volume main pump (ml)
1 to 999.95
Filling accuracy at 15 ml (%)
1
Filling volume additives pump (ml)
1 to 10

Maximum fill rate

Manual filling (ml/min)
1000
Dish filling (ml/min)
600
Fill delay (sec)
0 to 10

UV light

Output (W)
9
UVC light emission (W)
2.3 (254 nm)
Interface
RS-485
Power connection
100 V – 240 V, 50/60 Hz
