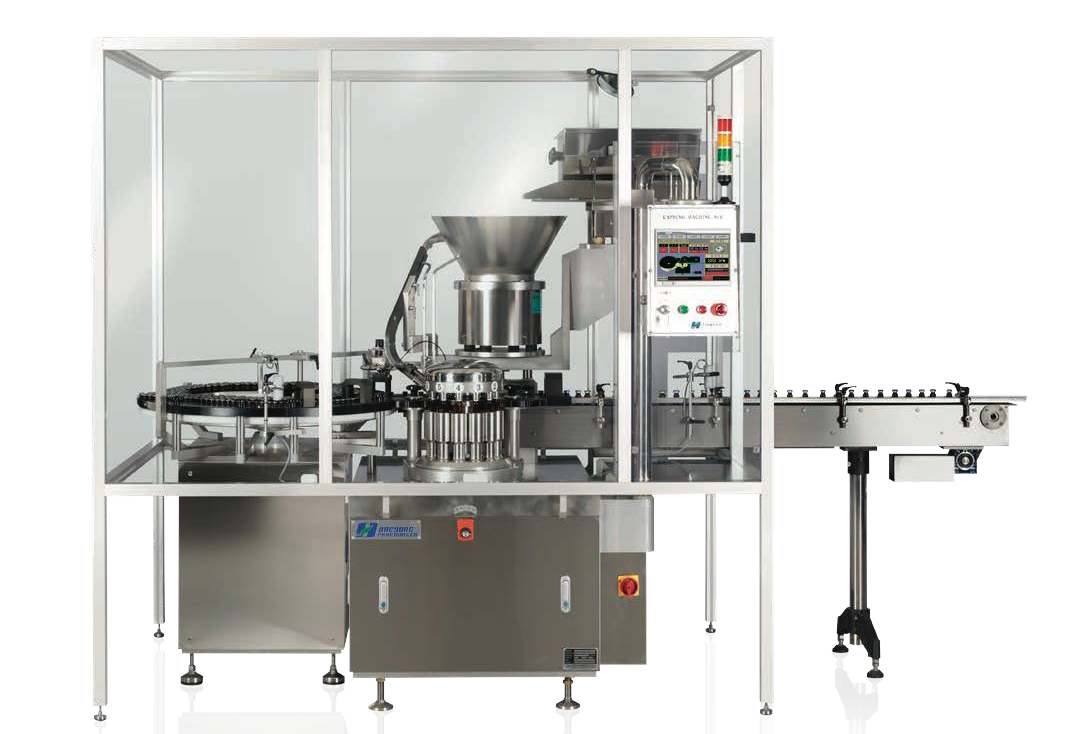

Eye Drops Filling Machine

Continuous filling method of MONOBLOCK type

Wide range of filling and accurate filling

In-cap stoppering and out-cap capping by vacuum are possible.

Exchange of CHANGE PARTS is easy (no special tools required)

Servo flow control system provides accurate filling amount.

All processes are detected by the interlock device.

Proven system that ensures accurate alignment of round and square bottles and does not fall over

TOUCH SCREEN HMI SYSTEM for user convenience (PC-based Touch applied)

DESCRIPTION MODEL
DEF-2000
Machine Type Monoblock Type
Out Capacity 5ml [Ø20] PE Bottle 150~200 ea/min
Filling Method Servo Control
Rotary Slide Dosing Pump 6PCS
Filling Nozzle 6PCS
Electricity Consumption Standard Voltage 220/380V, 50/60Hz
Installed Power 10kW
COMPRESSED AI Pressure 5Kg/㎠
Consumption 14ℓ/min
Drive Speed Control Inverter Control
Electric Control System PLC & Touch Screen
Dimension (L)2,800 X (W)1,750 X (H)2,000 mm
Weight 2,500kg
