ilShinBioBase
LP50~500

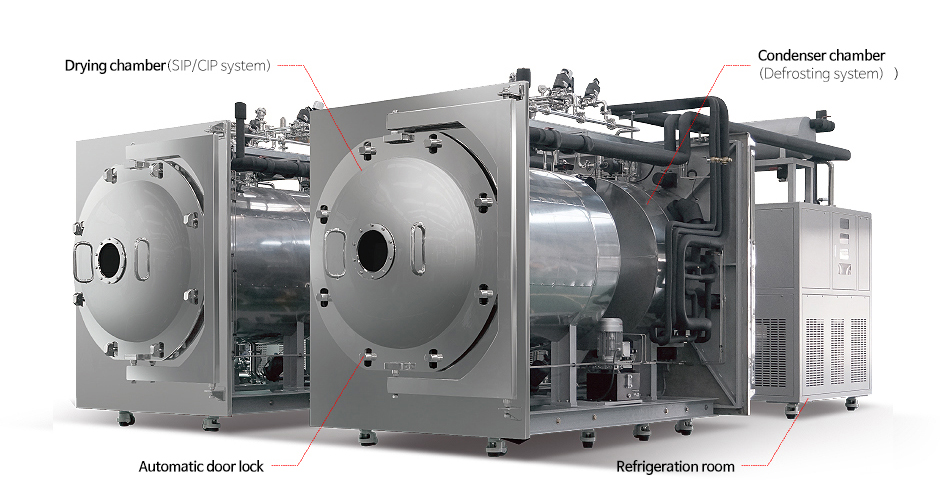

Freeze Dryer
For Pharmaceutical bio/food industry 50~500kg/Batchkg/Batch

Brochures
More Info

Specifications

Tottaly Ice Capacity
LP 50 : 3 L.
LP 100 : 10 L.
LP 200 : 20 L.
LP 300 : 300 L.
LP 50 : 500 L.
Condenser Temperature
Below -85℃
Shelf Temperature
-45℃ to +80℃
Shelf Areas
LP 50 : 3.2m2 (0.4m2 /EA)
LP 100 : 6.4m2 (0.8m2 /EA)
LP 200 : 13.2m2 (1.2m2 /EA)
LP 300 : 19.8m2 (1.8m2 /EA)
LP 500 : 33.6m2 (2.5m2 /EA)
Shelf Quantity
LP 50 -100 : 8+1
LP 200 - 300 : 11+1
LP 500 : 14+1
Shelf Dimensions
(WxDxH mm)
LP 50 : 500 x 800 x 20
LP 100 : 805 x 1005 x 20
LP 200 : 1005 x 1205 x 25
LP 300 : 1210 x 1510 x 25
LP 500 : 1510 x 1650 x 25
Ext. Dimensions
(WxDxH mm)
LP 50 : 1450 x 2003 x 2140
LP 100 : 1600 x 2415 x 2210
LP 200 : 2970 x 2855 x 2160
LP 300 : 3500 x 3390 x 2375
LP 500 : 3516 x 4616 x 2347
Electrical
380/400/440/480V 3Ph 50/60Hz
Refrigeration System
LP 50 : 7.5HP x 2EA
LP 100 : 10HP x 2EA
LP 200 : 30HP x 2EA
LP 300 : 40HP x 2EA
LP 500 : 30HP x 2EA
Vacuum vol. (LPM)
LP 50 : 841
LP 100 : 1,600
LP 200 : 4,000
LP 300 : 6,680
LP 500 : 14,000
Black Box
LP 50 : Optional
LP 100 : Optional
LP 200 :
LP 300 :
LP 500 :
