SP Genevac ATS

miVac

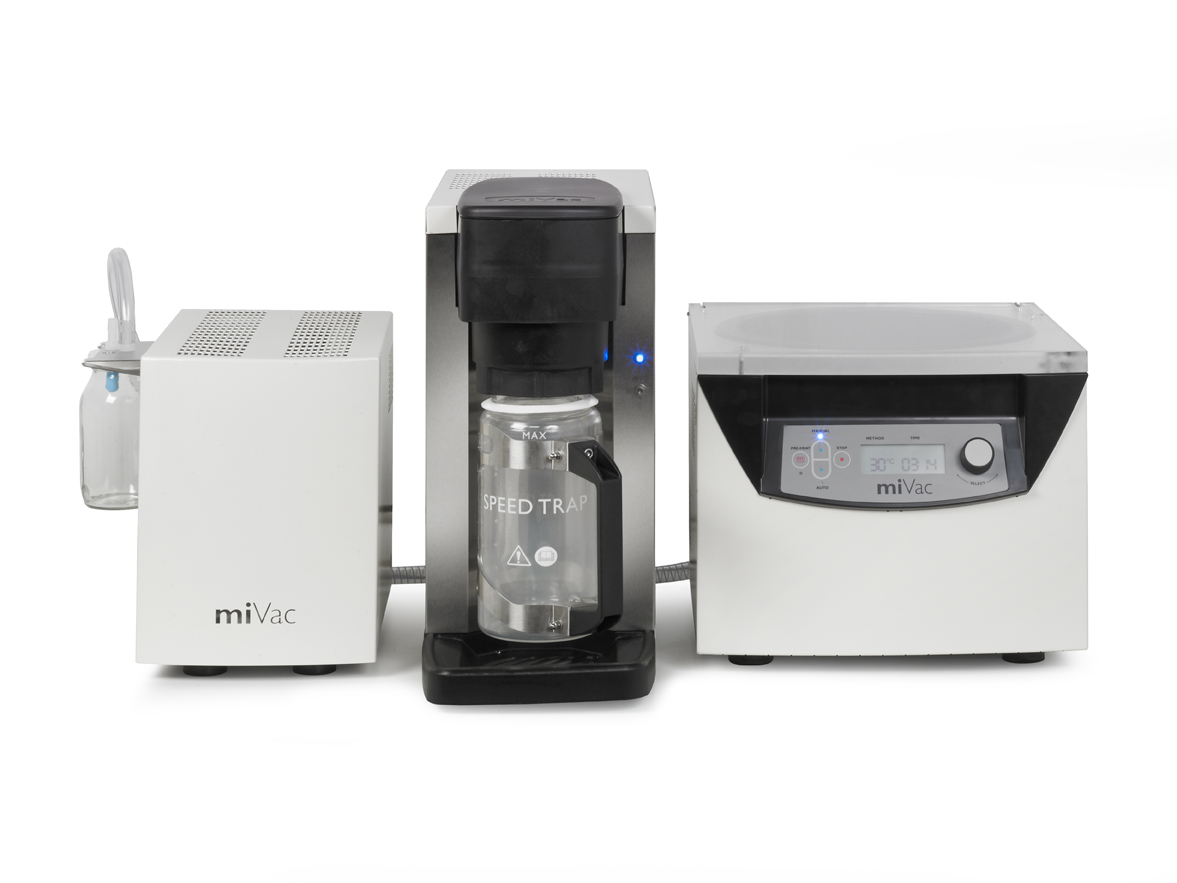

SP Genevac miVac Centrifugal Evaporator

Broşürler

Daha Fazla Bilgi

Özellikler

DNA Concentrator

Max. Rotor Speed

1465 rpm

Sample acceleration

Up to 250 g

Temperature control range

30 °C to 80 °C

Dimensions (WxDxH)

360 x 602 x 300mm

Width with catch-pot

141 mm.

Weight

41.5 kg

DUO Concentrator

Max. rotor speed

1465 rpm

Sample acceleration

Up to 250 g

Dimensions (WxDxH)

360 x 424 x* 300mm

Weight

21 kg

Quattro Concentrator

Max. rotor speed

1130 rpm

Sample acceleration

Up to 250 g

Dimensions (WxDxH)

480 x 594 x 300mm

Weight

35 kg

Duo Pump

Ultimate vacuum¹

< 10.0 mbar

Flow rate

38 litres/minute

Dimensions (WxDxH)

215 x 389 x 300 mm

Weight

19 kg

Quattro Pump

Ultimate vacuum¹

< 3.0 mbar

Flow rate

33 litres/minute

Dimensions (WxDxH)

215 x 389 x 300 mm

Weight

18 kg

Super Vacuum Pump

Ultimate vacuum¹

0.05 mbar

Dimensions (WxDxH)

282 x 432 x 302 mm

Weight

26.6 kg

SpeedTrap Condenser

Type

Single-stage vapor compression

Refrigerant gas

R449A

Refrigerant charge

100/120 V-71 g 230 V -64 g

CO2e

> 0.1 tonnes

Max. pressure (PS)

30 bar

Nom. operating temperature

-35 °C

Ultimate low temperature²

-50 °C

Max. defrost temperature

+60 °C

Rapid defrost

Yes

Rapid defrost over-ride

Yes (after Feb 2011)

Condenser jar

Plastic-coated borosillicate glass

Condenser jar capacity

1 litre

Dimensions (WxDxH)

212 x 563 x 450 mm

Weight

25.8 kg

Emissions

Noise (@ 1 metre)

74 dB(A) ³

Electrical Supply

230V 50Hz
220V 60Hz
120V 60Hz
100V 50HZ
100V 60Hz

Storage & Transportation Environment

Ambient temperature

0 °C to 40 °C 4

Relative humidity

0-95% non-condensing

Altitude

Sea-level to 12,000 m

Operational Environment

Ambient temperature

0 °C to 30 °C 4

Relative humidity

0-95% non-condensing

Altitude

Sea-level to 1,600 m

Pressure Controller

Measuring range

1-1100 mbar

Dimensions (WxDxH)

195 x 178 x 105 mm

Weight

1.5 kg

Power consumption

30 W
(@90-264 V, 50/60 Hz)

¹ Varies with build options
² Ultimate low temperature: operational values may vary
³ -10°C permissible during transport only
⁴ STP stands for standard temperature and pressure

All dimensions include allowances for pipe connections and lid opening. Weights quoted are for guidance purposes only; actual system weight will vary depending on the modules selected.
