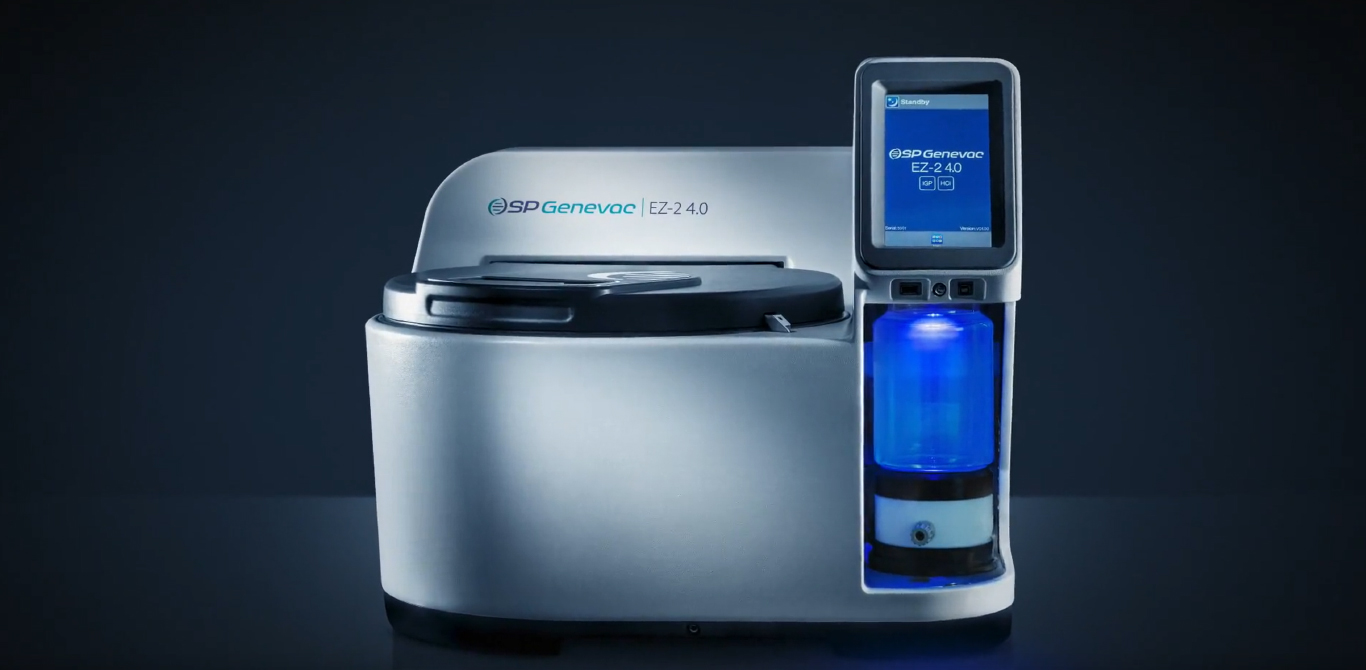

SP Genevac EZ-2 4.0 Series Centrifugal Evaporators

Free Demo Request
Brochures
More Info

Specifications

Evaporator
Max. Rotor Speed
1920 rpm
Nominal sample load g force
500 g
Temperature control range
30 °C to 80 °C
Max. load per swing
1.5 kg.
Max. operational imbalance
80 g.
Dimensions (WxDxH)
613 x 648 x 560 mm
Weight (approx)¹
90 kg
Elite Vacuum Pump (External)
Type
Oil-free scroll
Ultimate system vacuum
< 0.4 mbar
Dimensions (W x D x H)
432 x 282 x 302 mm
Weight
26.2 kg
Vacuum hose/control cable
2 m.
Plus/Standard Vacuum Pump (Internal)
Type for Standard
Diaphragm pump
Ultimate system vacuum
< 11 mbar
Type for Plus
Diaphragm pump
Ultimate system vacuum
<3 mbar
Condenser
Туре
Single-stage vapour compressor
Refrigerant gas
R1270
Refrigerant charge
28 g
Refrigerant GWP
2
Refrigerant CO2e
< 0.1 tonnes
Ultimate low temperature²
-50°C
Max. pressure (PS)
30 bar
Emissions
Noise (@ 1 metre)
65 dB(A)
Exhaust hose (supplied)
6 mm ID/8 mm OD
Electrical
Supply
230V 50 Hz
Supply
230V 50 Hz
220V 60 Hz
120V 60 Hz
100V 50 Hz
100V 60 Hz
Max supply input
1500 A
Storage/Transportation Environment
Ambient temperature
0 °C to 40 °C³
Relative humidity
10-80% non-condensing
Store upright at all times
Operational Environment
Ambient temperature
15 °C to 30 °C
Relative humidity
10-80% non-condensing
Altitude
Sea-level to 1600 m
Min. ventilation air-gap
50 mm
Installation environment
Indoor only
Static-dissipative laboratory or similar
Solvent Capacity & ACC Range
Max. solvent capacity
750 ml
Refrigeration ACC range
110 °C
Inert Gas Supply Requirements
Max. pressure
2 bar g (3 bar abs.)
Max. consumption (purge)
250 litres approx.
Min. pressure
1.5 bar g (2.5 bar abs.)
Max. consumption (blanket)
50 litres/hour approx.
Flow rate (nominal)
50 litres/min @ STP4.
Connector type
3/8 BSP female
Hose length
2.5 m
1 Varies with build options
2 Ultimate low temperature: operational values may vary
3 -10°C permissible during transport only
4 STP stands for standard temperature and pressure
