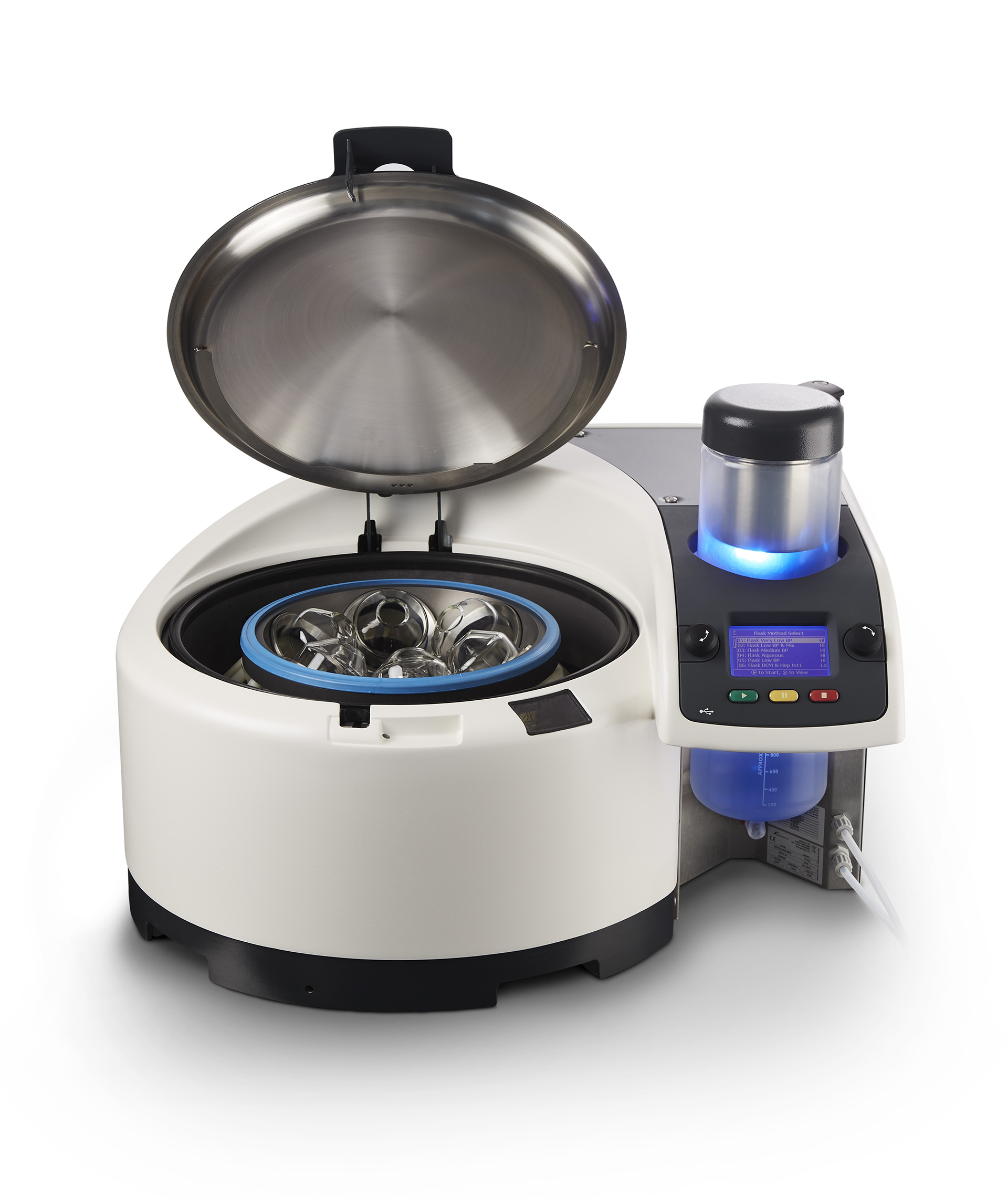

SP Genevac Rocket Synergy 2 Benchtop Evaporator

Brochures

More Info

Specifications

Evaporator

Max. Rotor Speed

1760 rpm (ask rotor) or 1530 rpm (bowl rotor)

Flask rotor capacity

6 x 400 ml

Bowl rotor capacity

5 litres

Nominal sample load g force

500 g

Temperature control range

30 ºC to 60 ºC

Dimensions (W x D x H) ¹

Dimensions (W x D x H) 1

Weight (approx.)

75 kg.

Vacuum Pump (Integral)

Type

Diaphragm pump

Ultimate system vacuum

< 3mbar

Condenser (Integral)

Type

Aluminium water jacket

Minimum coolant temp.

-15 ºC

Required coolant ow rate

1.5 ± 0.5 litres/minute

Max. coolant inlet pressure

30 psi (2 bar g)

Inert Gas Supply (IGP option only)

Maximum pressure

1.5 bar g (2.5 bar abs.)

Minimum pressure

1 bar g (2 bar abs.)

Flow rate (nominal)

30 litres/minute

Hose length

2.5 m

Connector type

³/_8” BSP female

Emissions

Noise (@ 1 metre)

63 dB(A)

Re-Circulating Chiller (Remote)

Coolant

50% mix water and mono-ethylene glycol

Dimensions (W x D x H)

320 x 500 x 600 mm

Weight

48 kg

Length of coolant hoses

2 m

Min/Max coolant temp

-20 ºC to +40 ºC

Electrical Supply

230V 50Hz
220V 60Hz
120V 60Hz
100V 50Hz
100V 60Hz

Max supply input

1500 A

Storage/Transportation Environment

Ambient temperature

0 °C to 40 °C 2

Relative humidity

10-80% non-condensing

Operational Environment

Ambient temperature

15 ºC to 30 ºC

Relative humidity

10-80% non-condensing

Altitude

Sea-level to 1600 m

Min. ventilation air-gap

75 mm

Ingress protection rating

IP 20

Exhaust hose (supplied)

6 mm ID / 8 mm OD

Installation environment

Indoor only.
Static-dissipative laboratory or similar

¹ Dimensions include allowance for lid opening, but do not allow for cable & hose connections
² -10°C permissible during transport only

Recirculating Chiller

A powerful recirculating chiller is available for the Rocket Synergy 2 evaporation system. The system can control the chiller via an RS232 link, thereby providing improved solvent recovery and better drying of samples compared with using a static cooled supply. A connection kit with insulated pipe work is available to accompany the chiller.
