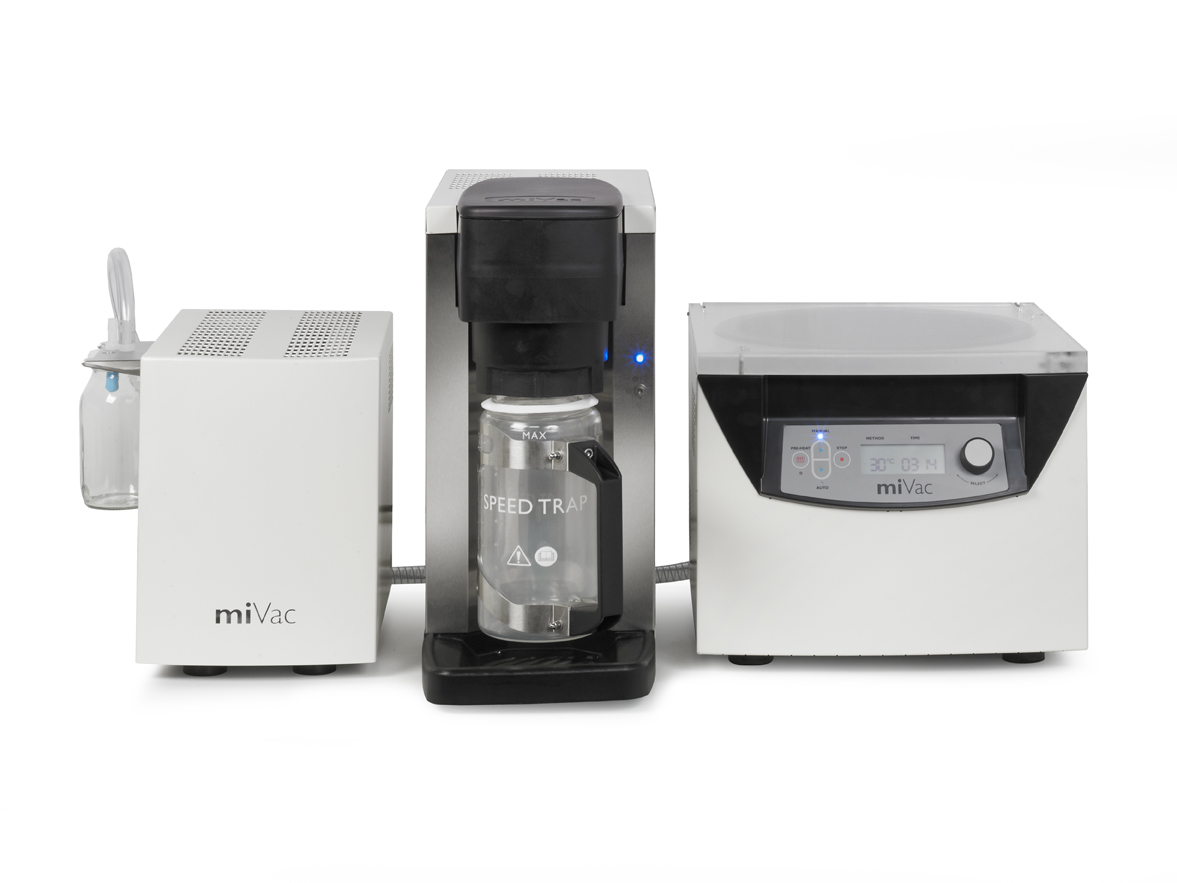

SP Genevac miVac Centrifugal Evaporator

Brochures
More Info

Specifications

DNA Concentrator
Max. Rotor Speed
1465 rpm
Sample acceleration
Up to 250 g
Temperature control range
30 °C to 80 °C
Dimensions (WxDxH)
360 x 602 x 300mm
Width with catch-pot
141 mm.
Weight
41.5 kg
DUO Concentrator
Max. rotor speed
1465 rpm
Sample acceleration
Up to 250 g
Dimensions (WxDxH)
360 x 424 x* 300mm
Weight
21 kg
Quattro Concentrator
Max. rotor speed
1130 rpm
Sample acceleration
Up to 250 g
Dimensions (WxDxH)
480 x 594 x 300mm
Weight
35 kg
Duo Pump
Ultimate vacuum¹
< 10.0 mbar
Flow rate
38 litres/minute
Dimensions (WxDxH)
215 x 389 x 300 mm
Weight
19 kg
Quattro Pump
Ultimate vacuum¹
< 3.0 mbar
Flow rate
33 litres/minute
Dimensions (WxDxH)
215 x 389 x 300 mm
Weight
18 kg
Super Vacuum Pump
Ultimate vacuum¹
0.05 mbar
Dimensions (WxDxH)
282 x 432 x 302 mm
Weight
26.6 kg
SpeedTrap Condenser
Type
Single-stage vapor compression
Refrigerant gas
R449A
Refrigerant charge
100/120 V-71 g 230 V -64 g
CO2e
> 0.1 tonnes
Max. pressure (PS)
30 bar
Nom. operating temperature
-35 °C
Ultimate low temperature2
-50 °C
Max. defrost temperature
+60 °C
Rapid defrost
Yes
Rapid defrost over-ride
Yes (after Feb 2011)
Condenser jar
Plastic-coated borosillicate glass
Condenser jar capacity
1 litre
Dimensions (WxDxH)
212 x 563 x 450 mm
Weight
25.8 kg
Emissions
Noise (@ 1 metre)
74 dB(A) 3
Electrical Supply
230V 50Hz
220V 60Hz
120V 60Hz
100V 50HZ
100V 60Hz
Storage & Transportation Environment
Ambient temperature
0 °C to 40 °C 4
Relative humidity
0-95% non-condensing
Altitude
Sea-level to 12,000 m
Operational Environment
Ambient temperature
0 °C to 30 °C 4
Relative humidity
0-95% non-condensing
Altitude
Sea-level to 1,600 m
Pressure Controller
Measuring range
1-1100 mbar
Dimensions (WxDxH)
195 x 178 x 105 mm
Weight
1.5 kg
Power consumption
30 W
(@90-264 V, 50/60 Hz)
1 Varies with build options
2 Ultimate low temperature: operational values may vary
3 -10°C permissible during transport only
4 STP stands for standard temperature and pressure

All dimensions include allowances for pipe connections and lid opening. Weights quoted are for guidance purposes only; actual system weight will vary depending on the modules selected.
