Systec

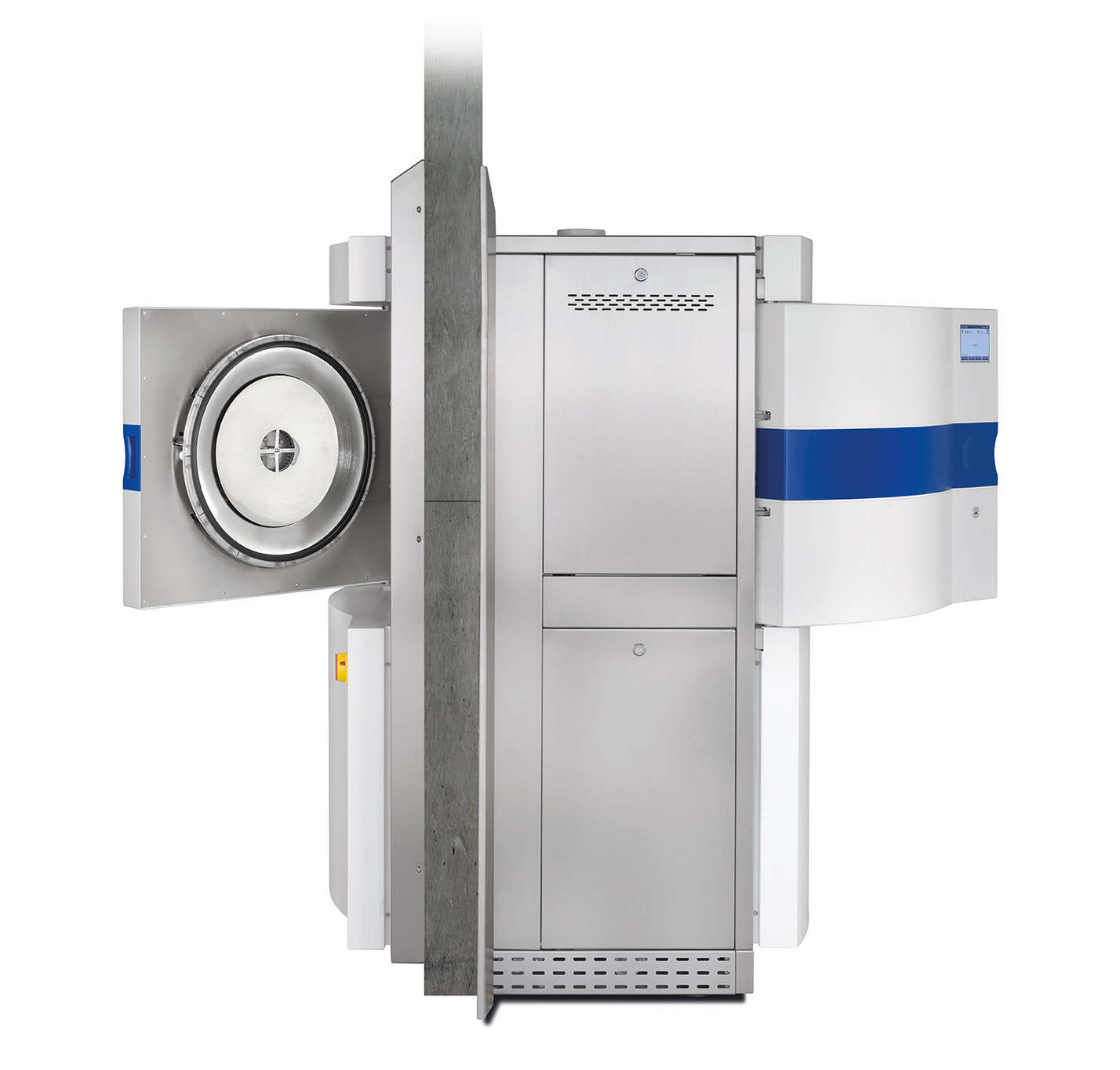

H Series 2D

HX-90 2D, HX-150 2D, HX-200 2D, HX-320 2D, HX-430 2D, HX-540 2D, HX-650 2D, HX-580 2D, HX-780 2D, HX-980 2D, HX-1180 2D, HX-1380 2D, HX-1580 2D

Brochures

More Info

Specifications

Dimensions and performance

Chamber dimensions Ø x depth (mm)

HX-90 2D : 400 x 750

HX-150 2D : 500 x 750

HX-200 2D : 500 x 1000

HX-320 2D: 500 x 750

HX-430 2D : 740 x 750

HX-540 2D : 740 x 1000

HX-650 2D : 740 x 1500

HX-580 2D : 1000 x 750

HX-780 2D : 1000 x 1000

HX-980 2D : 1000 x 1250

HX-1180 2D : 1000 x 1500

HX-1380 2D: 1000 x 1750

HX-1580 2D : 1000 x 2000

Chamber volume (l) total / nominal

HX-90 2D : 100/90

HX-150 2D : 160/150

HX-200 2D : 210/200

HX-320 2D: 370/320

HX-430 2D : 480/430

HX-540 2D : 590/540

HX-650 2D : 700/650

HX-580 2D : 680/580

HX-780 2D : 880/780

HX-980 2D : 1075/980

HX-1180 2D : 1270/1180

HX-1380 2D: 1465/1380

HX-1580 2D : 1665/1580

Net weight (kg)

HX-90 2D : 430

HX-150 2D : 500

HX-200 2D : 560

HX-320 2D: 850

HX-430 2D : 930

HX-540 2D : 1020

HX-650 2D : 1100

HX-580 2D : 1280

HX-780 2D : 1400

HX-980 2D : 1500

HX-1180 2D : 1600

HX-1380 2D: 1770

HX-1580 2D : 1920

Heating capacity (kW)

HX-90 2D : 9,0

HX-150 2D : 9,0

HX-200 2D : 9,0

HX-320 2D: 18,0

HX-430 2D : 18,0

HX-540 2D : 18,0

HX-650 2D : 18,0

HX-580 2D : 36,0

HX-780 2D : 36,0

HX-980 2D : 36,0

HX-1180 2D : 36,0

HX-1380 2D: 36,0

HX-1580 2D : 36,0

Electrical connections for the Systec HX-65 to HX-200: 380 –400 V, 50 / 60 Hz, 16 A.
Electrical connections for the Systec HX-210 to HX-650: 380 –400 V, 50 /60 Hz, 32 A.
Electrical connections for the Systec HX-580 to HX-1580: 380– 400 V, 50/ 60 Hz, 63 A.
Different voltage available upon request.
