Radwag

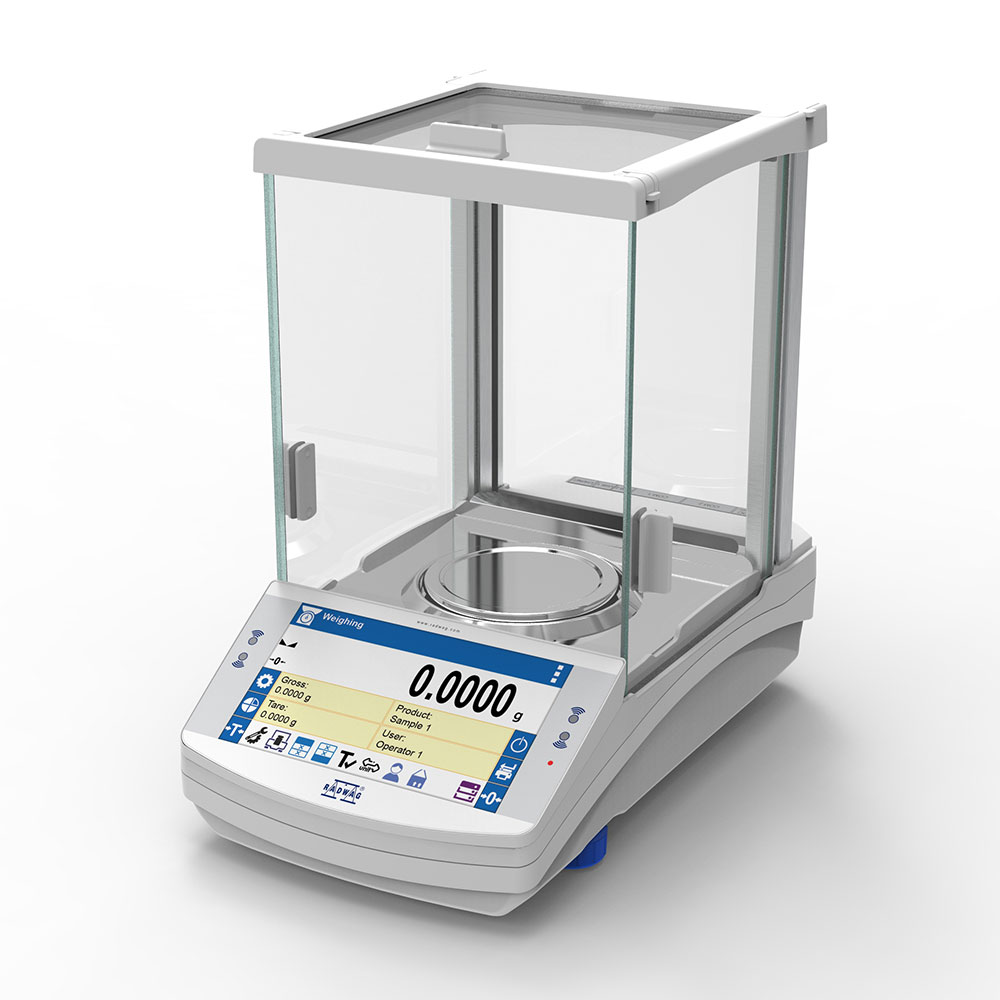

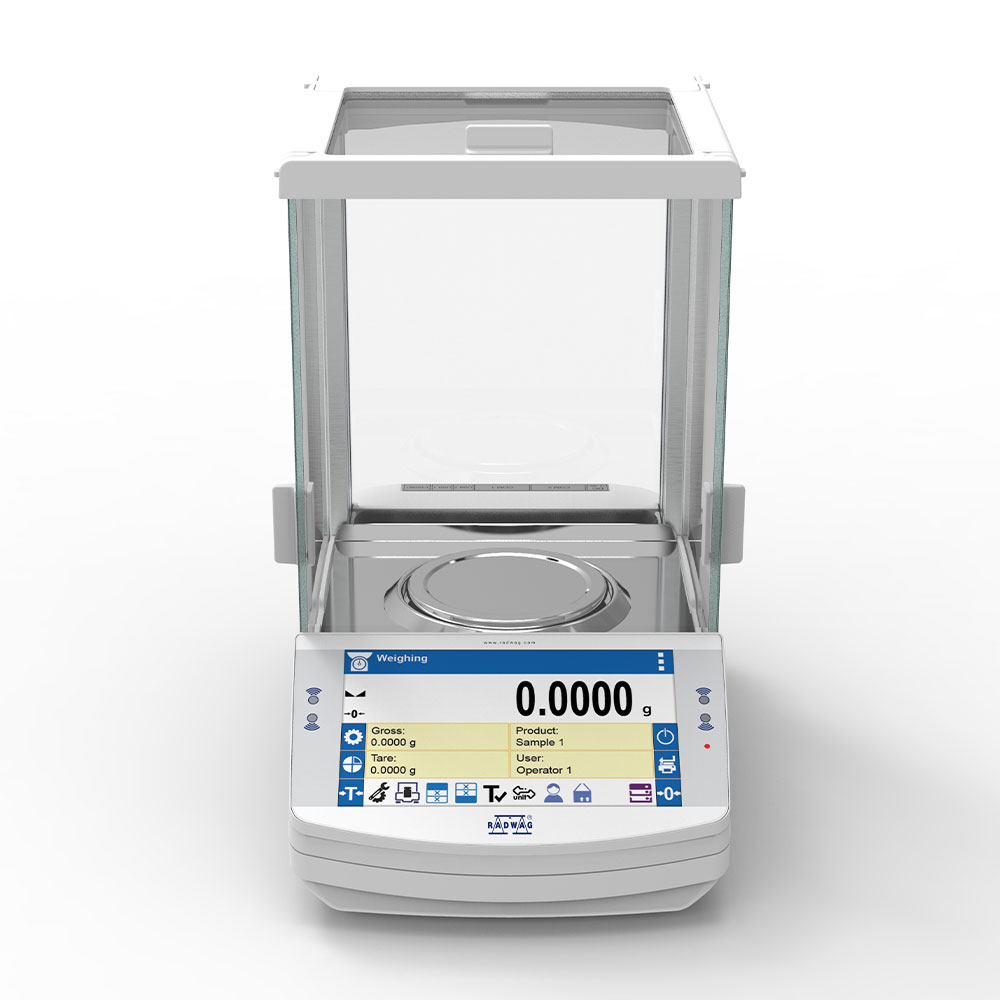

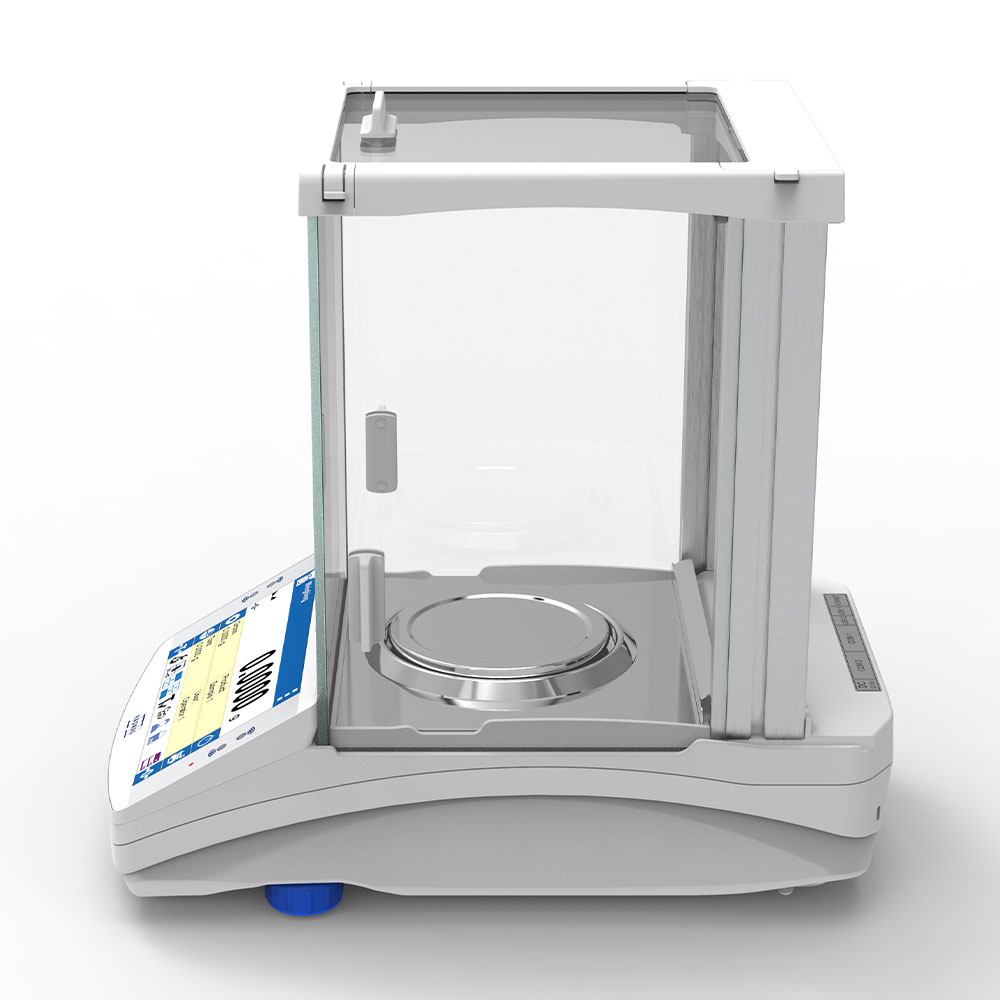

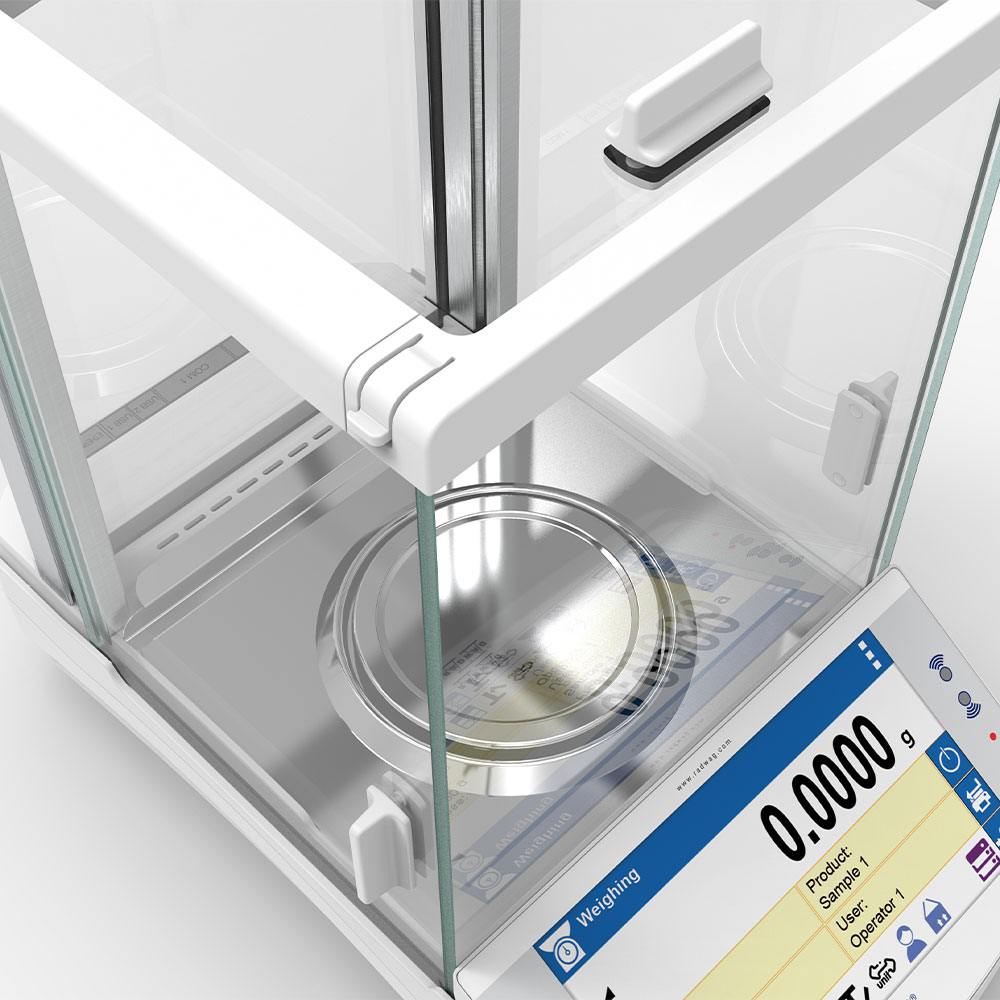

AS 220.X7 Analytical Balance

Ücretsiz Demo Talebi
Broşürler
Daha Fazla Bilgi

Özellikler

Metrological parameters

Maximum capacity [Max] 220 g
Minimum load 10
Readability [d] 0.1 mg
Verification unit [e] 1
Tare range -220 g
Standard repeatability [5% Max] 0.06 mg
Standard repeatability [Max] 0.07 mg
Standard minimum weight (USP) 120 mg
Standard minimum weight (U=1%, k=2) 12 mg
Permissible repeatability [5% Max] 0.09 mg
Permissible repeatability [Max] 0.1 mg
Linearity ±0.2 mg
Stabilization time 2 s
Adjustment internal (automatic)
OIML Class I

Physical parameters

Leveling system semi-automatic - LevelSENSING
Display 7″ graphic colour touchscreen
Weighing chamber doors manual
Delivery components Balance, weighing pan, weighing pan shield, bottom cover, power supply.
Weighing chamber dimensions 190×190×222 mm
Weighing pan dimensions ø100 mm
Packaging dimensions 490×400×520 mm
Net weight 7.06 kg
Gross weight 9.5 kg
Construction
Protection class IP 43

Components and software

Database capacity 7
Features of use Touch-free operation, 2 IR Sensors

Communication interface

Communication interface RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi®, Ethernet

Electrical parameters

Power supply Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance 12 – 15V DC 0.8A max
Power consumption max. 4 W

Environmental conditions

Operating temperature +10 — +40 °C
Ambient conditions monitoring (option) THBR 2.0 System, THBR BOX, THB P, THB W, THB S
Relative humidity 40% — 80%
