Metrological parameters
Maximum capacity [Max]	4500 g
Minimum load	500 mg
Readability [d]	10 mg
Verification unit [e]	100 mg
Tare range	-4500 g
Standard repeatability [5% Max]	5 mg
Standard repeatability [Max]	8 mg
Standard minimum weight (USP)	10 g
Standard minimum weight (U=1%, k=2)	1 g
Linearity	±20 mg
Stabilization time	1.5 s
Adjustment	internal (automatic)
OIML Class	II
Physical parameters
Leveling system	manual

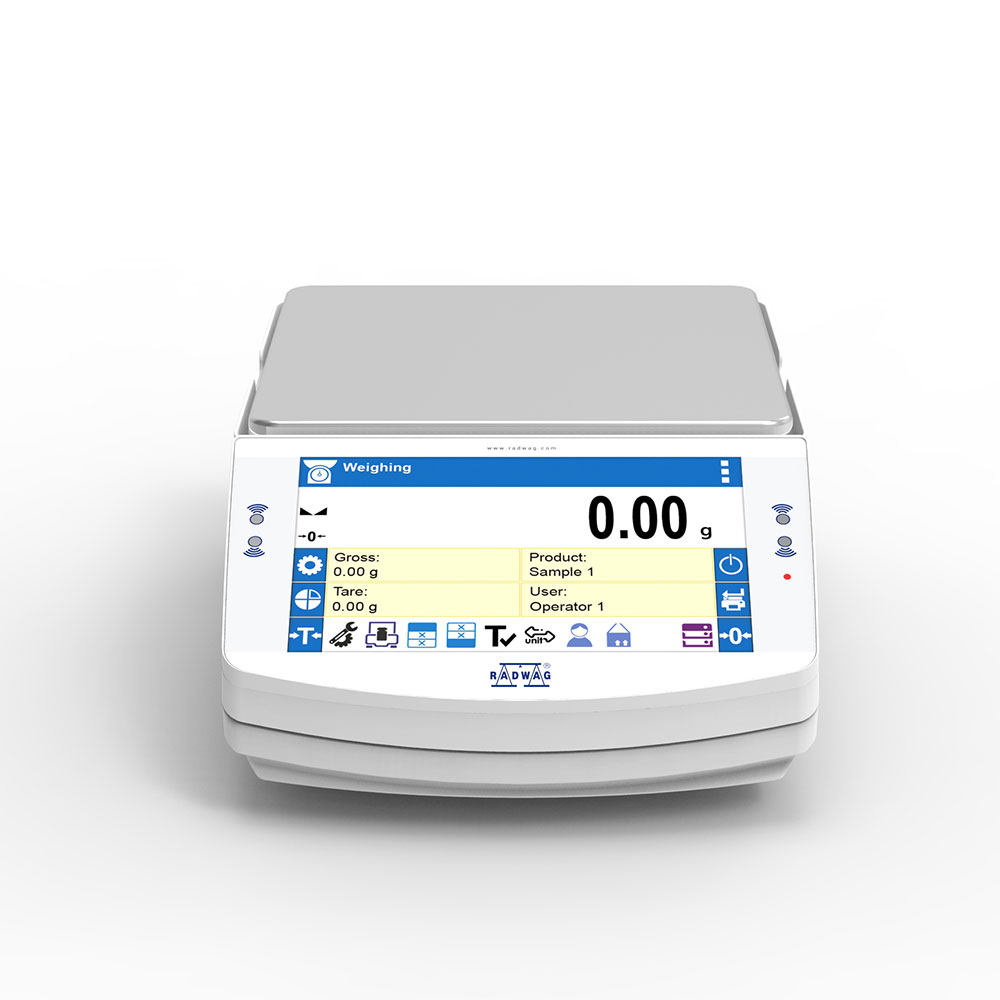

Display	7″ graphic colour touchscreen
Delivery components	Balance, weighing pan, weighing pan shield, power supply
Weighing pan dimensions	195×195 mm
Device dimensions	333x206x107 mm
Packaging dimensions	476×381×346 mm
Net weight	4.5 kg
Gross weight	6 kg
Construction
Protection class	IP 43
Components and software
Database capacity	7
Features of use	Touch-free operation, 2 IR Sensors
Communication interface

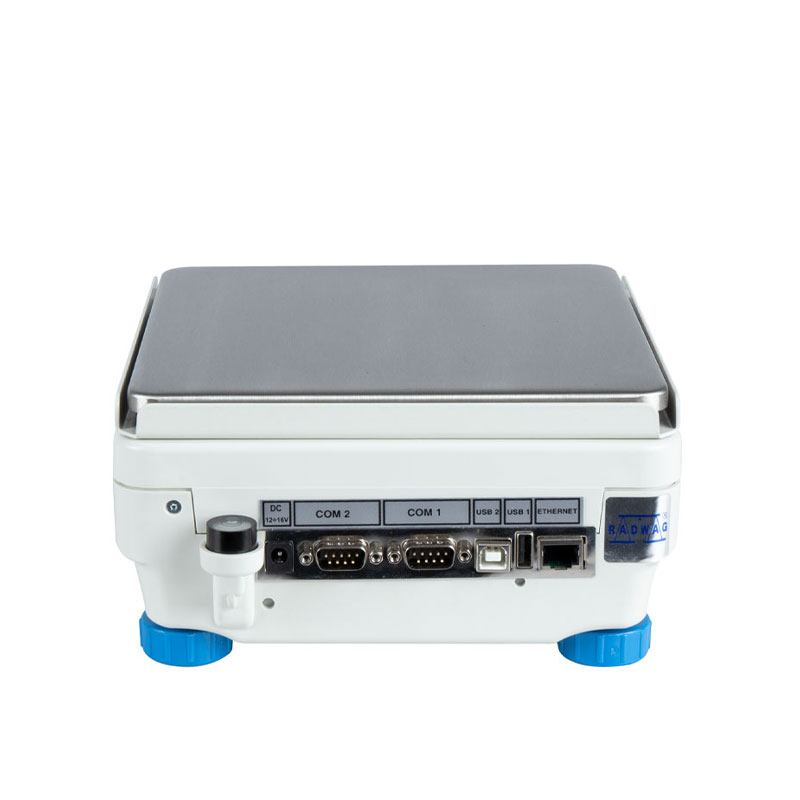

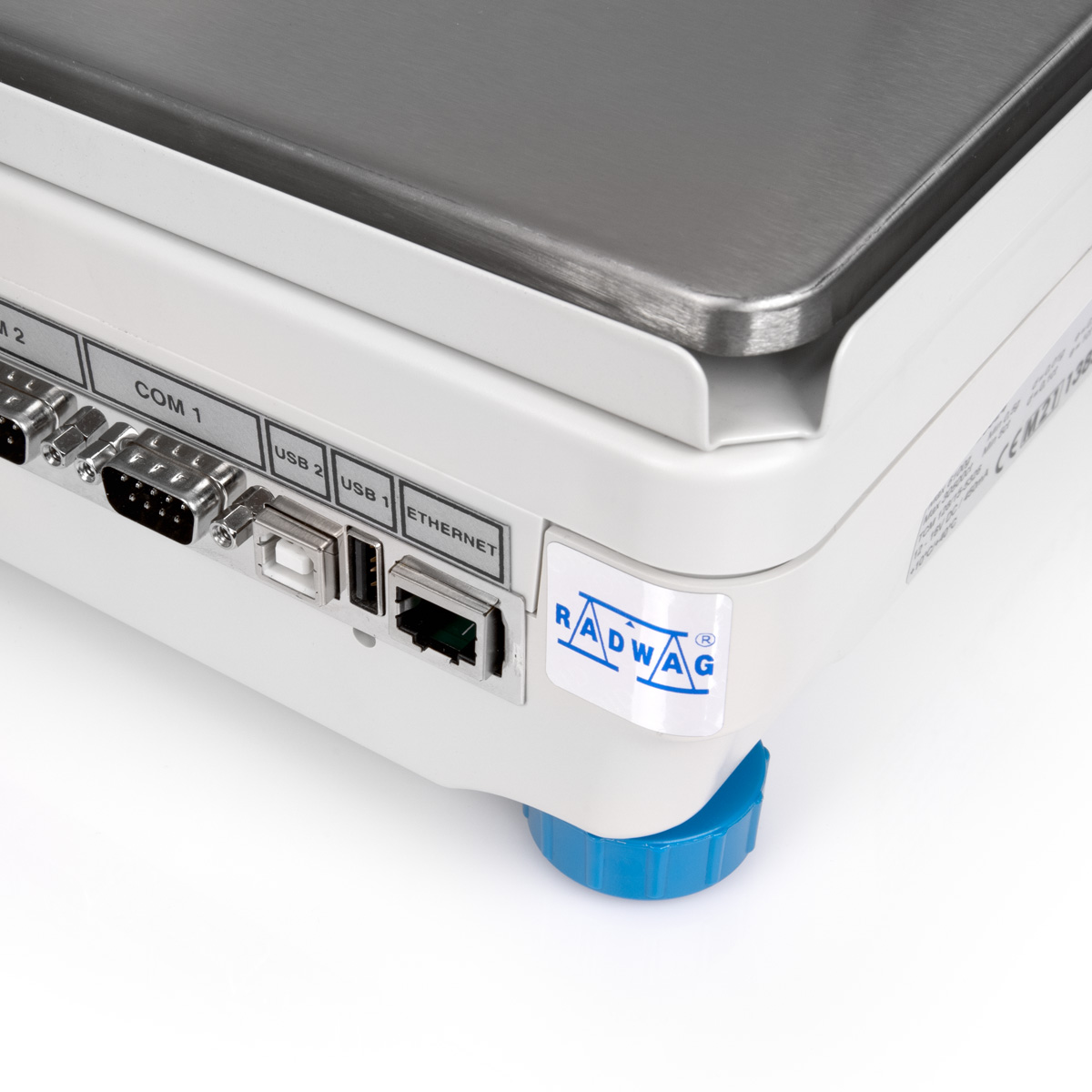

Communication interface	2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®
Electrical parameters
Power supply	Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance	12 – 15V DC 0.8A max
Power consumption	4 W
Environmental conditions
Operating temperature	+10 — +40 °C
Ambient conditions monitoring (option)	THBR 2.0 System, THBR BOX, THB P, THB W, THB S
Storage temperature	-20 — +50 °C
Relative humidity	40% — 80%
