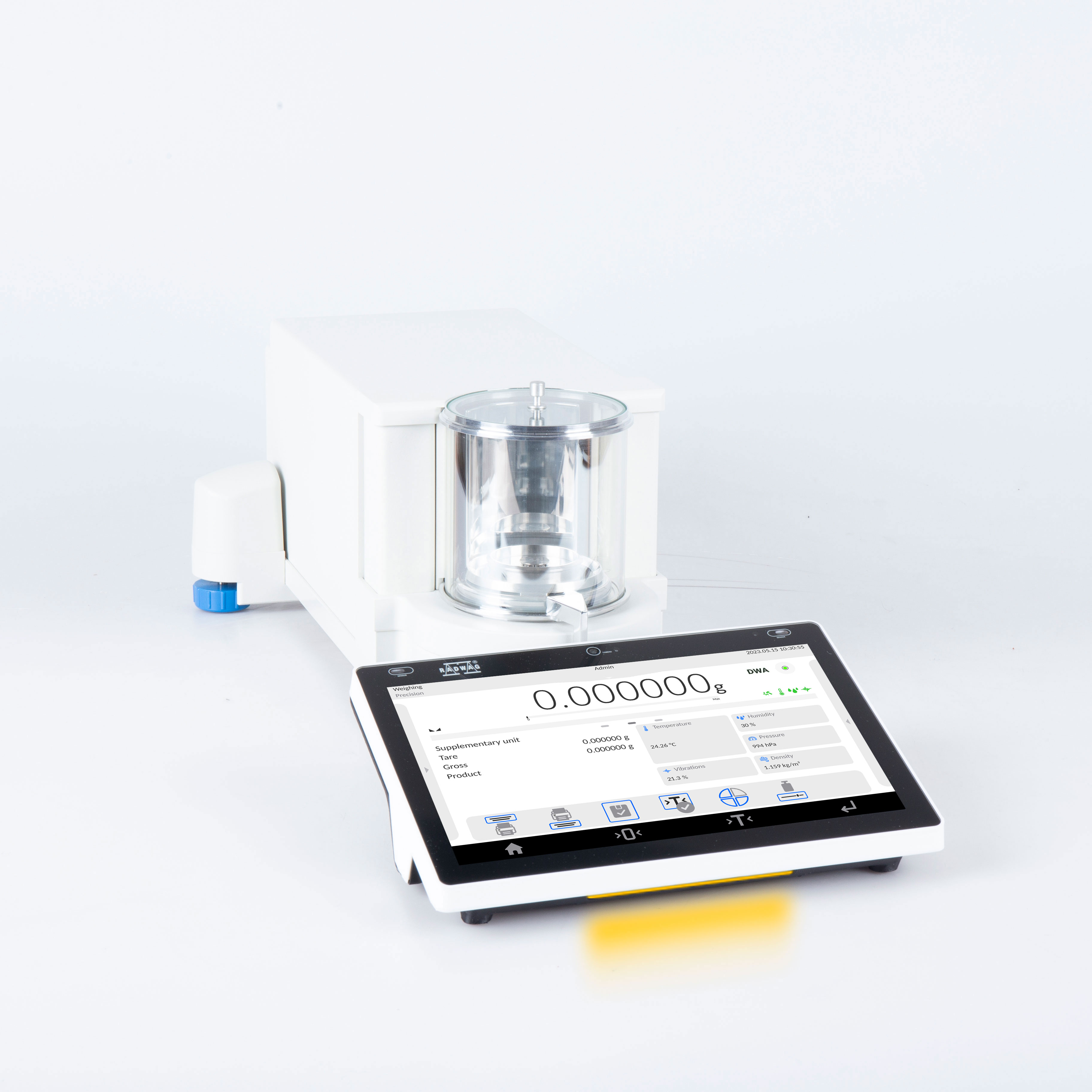

MYA 11.1.5Y Microbalance

Ücretsiz Demo Talebi
Broşürler
Daha Fazla Bilgi

Özellikler

Metrological parameters
Maximum capacity [Max] 11 g
Minimum load 0.1 mg
Readability [d] 1 µg
Verification unit [e] 1 mg
Tare range -11 g
Standard repeatability [5% Max] 0.45 µg
Standard repeatability [Max] 2.5 µg
Standard minimum weight (USP) 0.9 mg
Standard minimum weight (U=1%, k=2) 0.09 mg
Permissible repeatability [5% Max] 1.6 µg
Permissible repeatability [Max] 3.5 µg
Linearity ±6 µg
Eccentric load deviation 6 µg
Sensitivity time drift 1×10⁻⁶/Year×Rt
Stabilization time 3.5 s
Adjustment internal (automatic)
OIML Class I
Physical parameters
Leveling system automatic - Reflex Level System
Display 10″ graphic colour touchscreen
Weighing chamber doors automatic
Delivery components Microbalance, terminal, weighing pan, weighing pan shield, glass lid, power supply, pincette, brush, fabric dust cover.
Weighing chamber dimensions ø90×90 mm
Weighing pan dimensions ø16 mm
Packaging dimensions 750×492×595 mm
Net weight 9.1 kg
Gross weight 15.5 kg
Communication interface
Communication interface 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Electrical parameters
Power supply Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance 12 – 15V DC 1.4A max*
Environmental conditions
Operating temperature +10 — +40 °C
Operating temperature change rate ±0.3°C/1h (±1°C/8h)
Relative humidity 40% — 80%
Relative humidity change rate ±1%/h (±4%/8h)
