Radwag
WL-110-0004

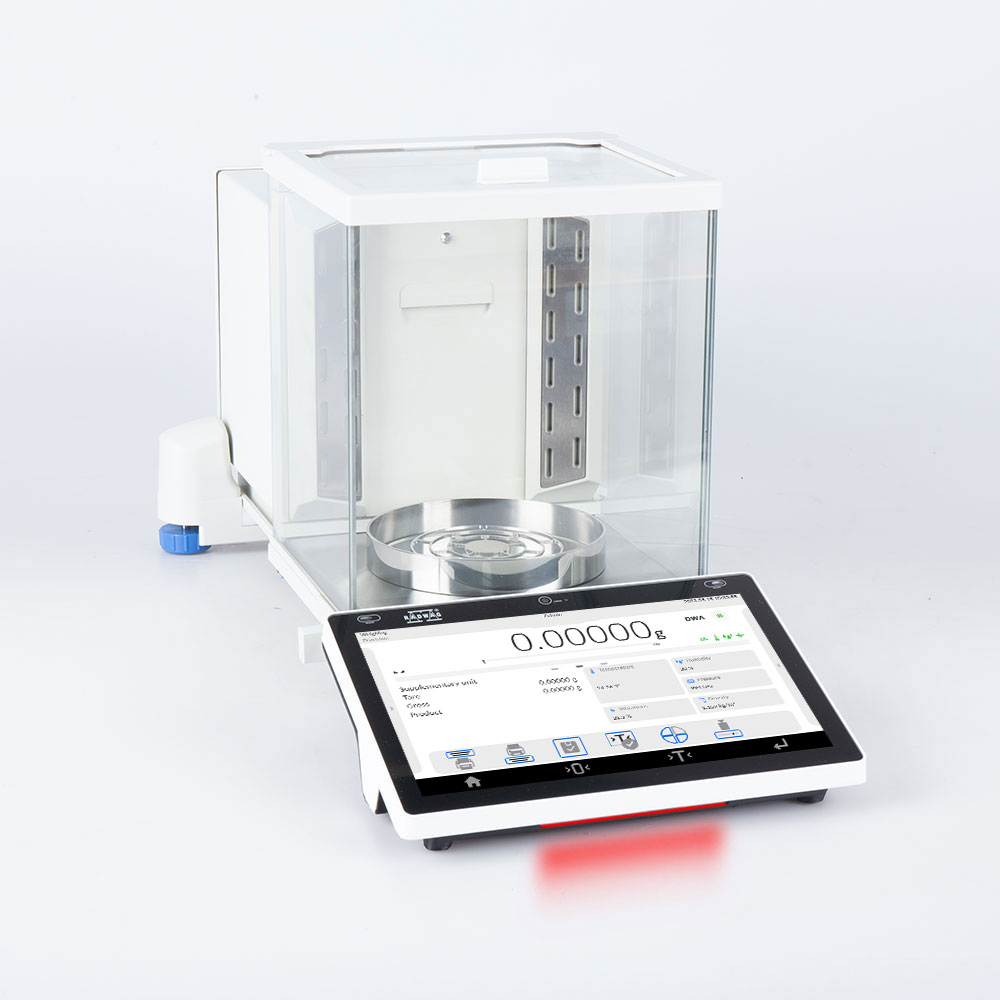

XA 82/220.5Y.A Analytical Balance

Ücretsiz Demo Talebi
Broşürler
Daha Fazla Bilgi

Özellikler

Metrological parameters
Maximum capacity [Max] 82 / 220 g
Minimum load 1 mg
Readability [d] 0.01 / 0.1 mg
Verification unit [e] 1 mg
Tare range -220 g
Standard repeatability [5% Max] 0.005 mg
Standard repeatability [Max] 0.06 mg
Standard minimum weight (USP) 10 mg
Standard minimum weight (U=1%, k=2) 1 mg
Permissible repeatability [5% Max] 0.012 mg
Permissible repeatability [Max] 0.08 mg
Linearity ±0.06 / 0.2 mg
Eccentric load deviation 0.2 mg
Sensitivity time drift 1×10⁻⁶/Year×Rt
Stabilization time 4 s
Adjustment internal (automatic)
OIML Class I
Physical parameters
Leveling system automatic - Reflex Level System

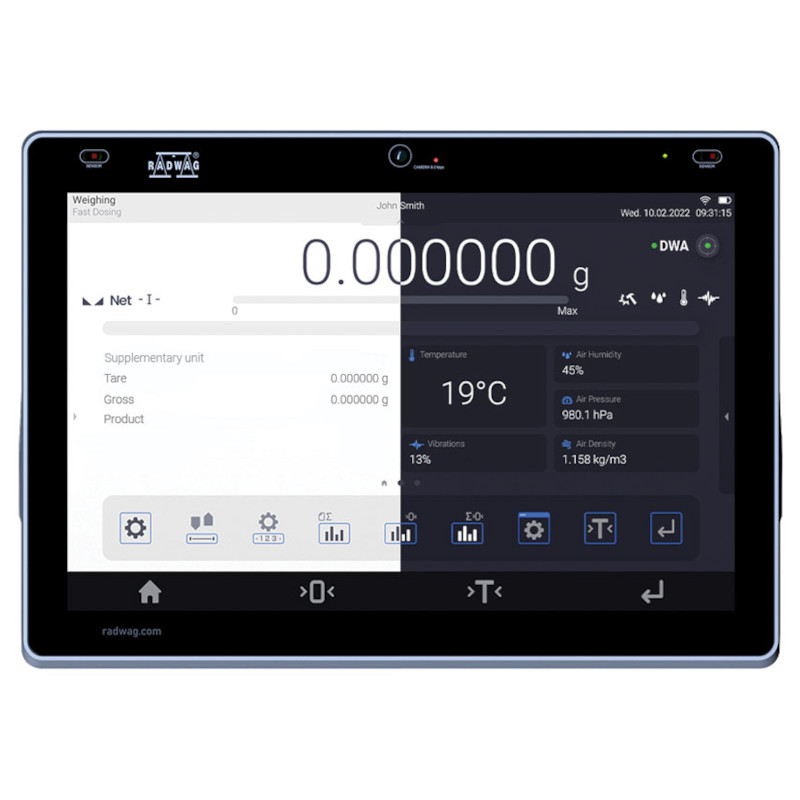

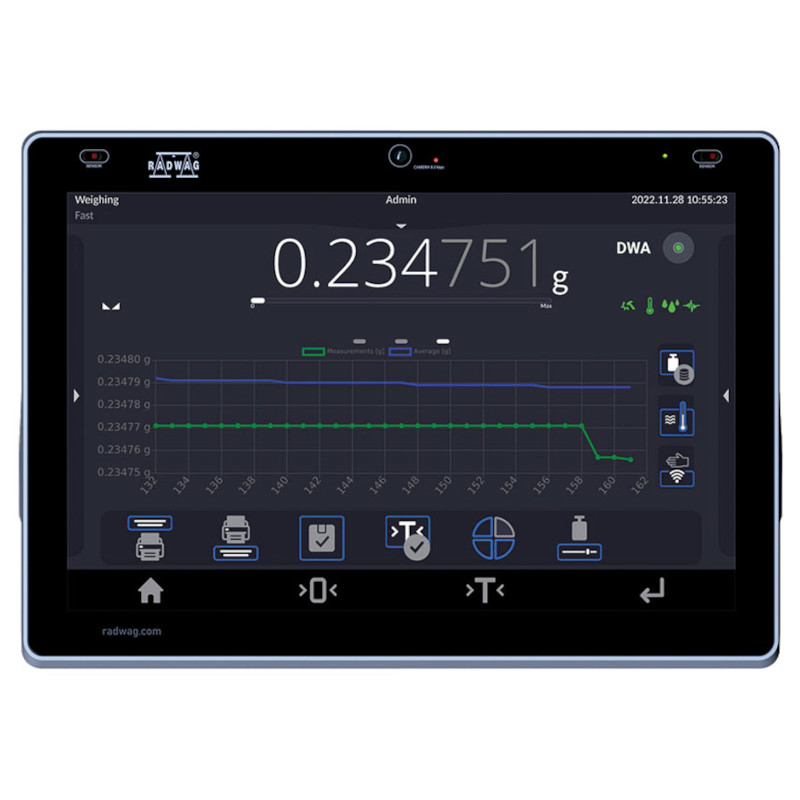

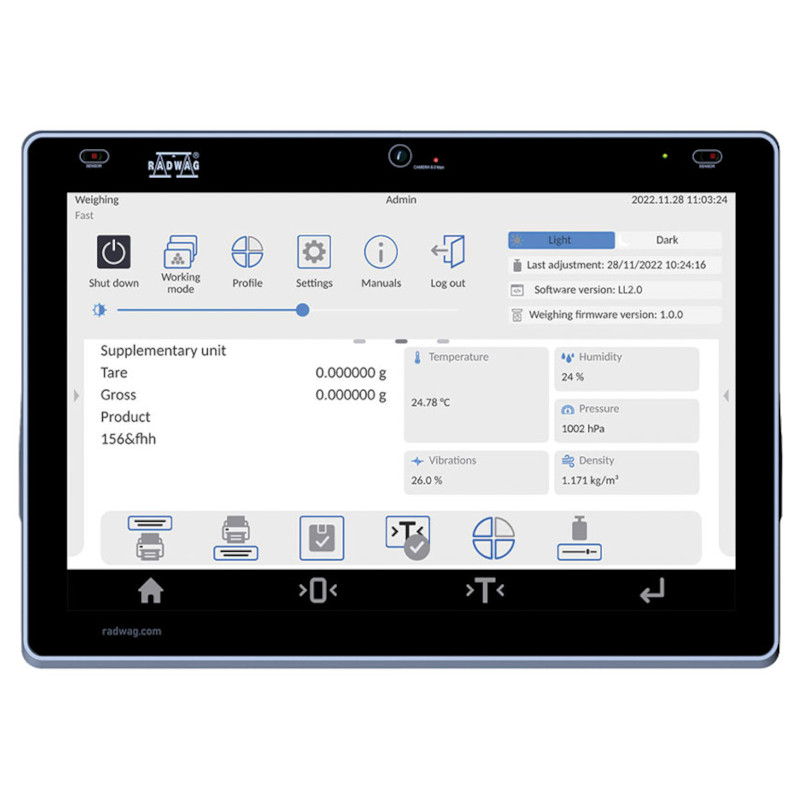

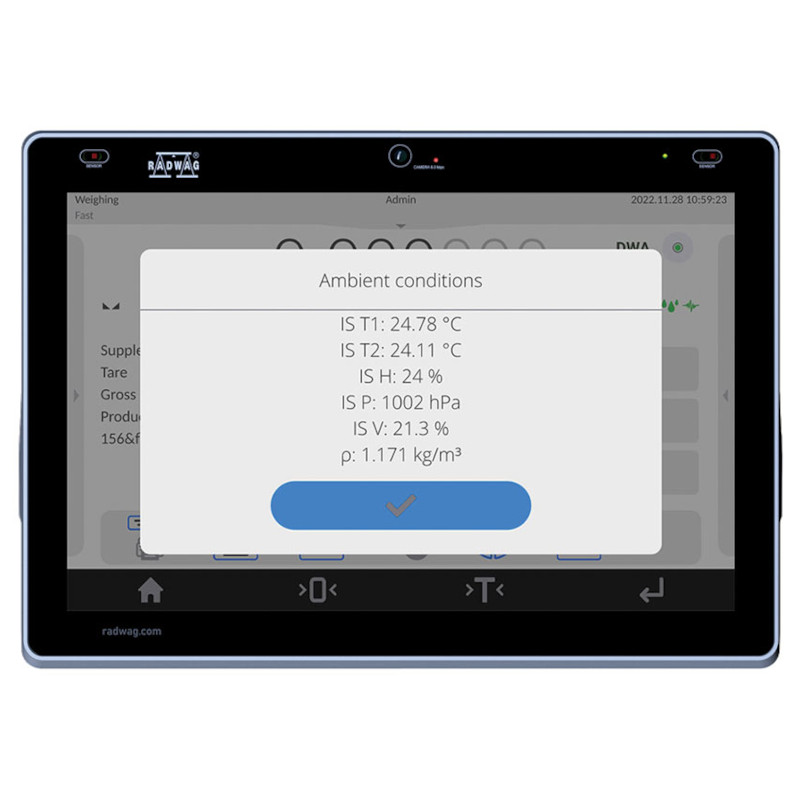

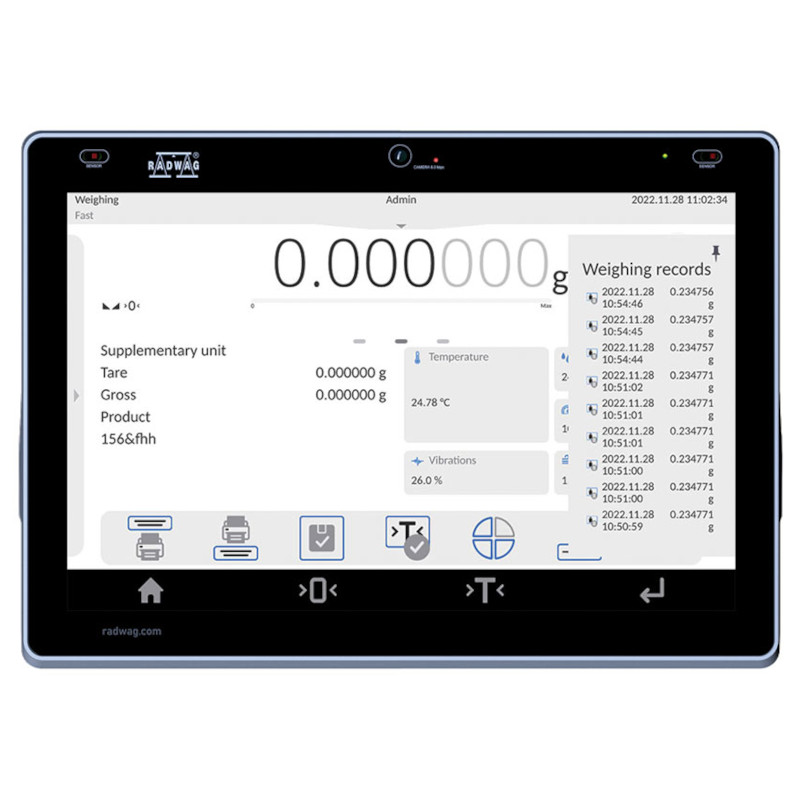

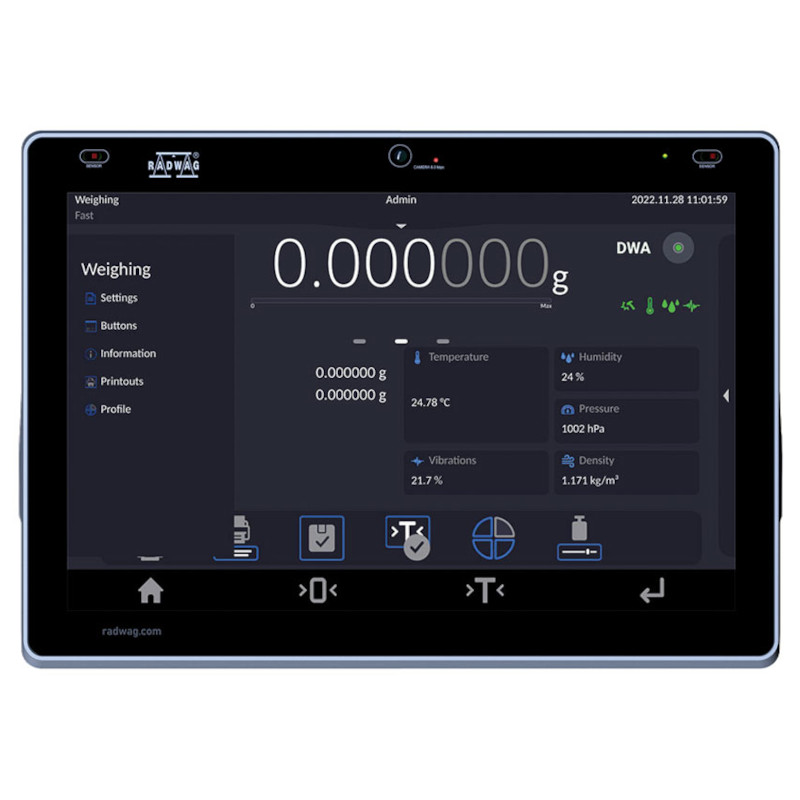

Display 10″ graphic colour touchscreen
Weighing chamber automatic
Weighing chamber doors automatic
Delivery components Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.
Weighing chamber dimensions 200×170×220 mm
Weighing pan dimensions ø90 open-work pan + ø85 (option) mm
Packaging dimensions 750×492×595 mm
Net weight 15.27 kg
Gross weight 19.1 kg
Construction
Protection class IP 43
Communication interface
Communication interface 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Electrical parameters
Power supply Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance 12 – 15V DC 1.6A max*
Environmental conditions
Operating temperature +10 — +40 °C
Operating temperature change rate ±0.3°C/1h (±1°C/8h)
Relative humidity 20% — 80%
Relative humidity change rate ±1%/h (±4%/8h)
