Radwag

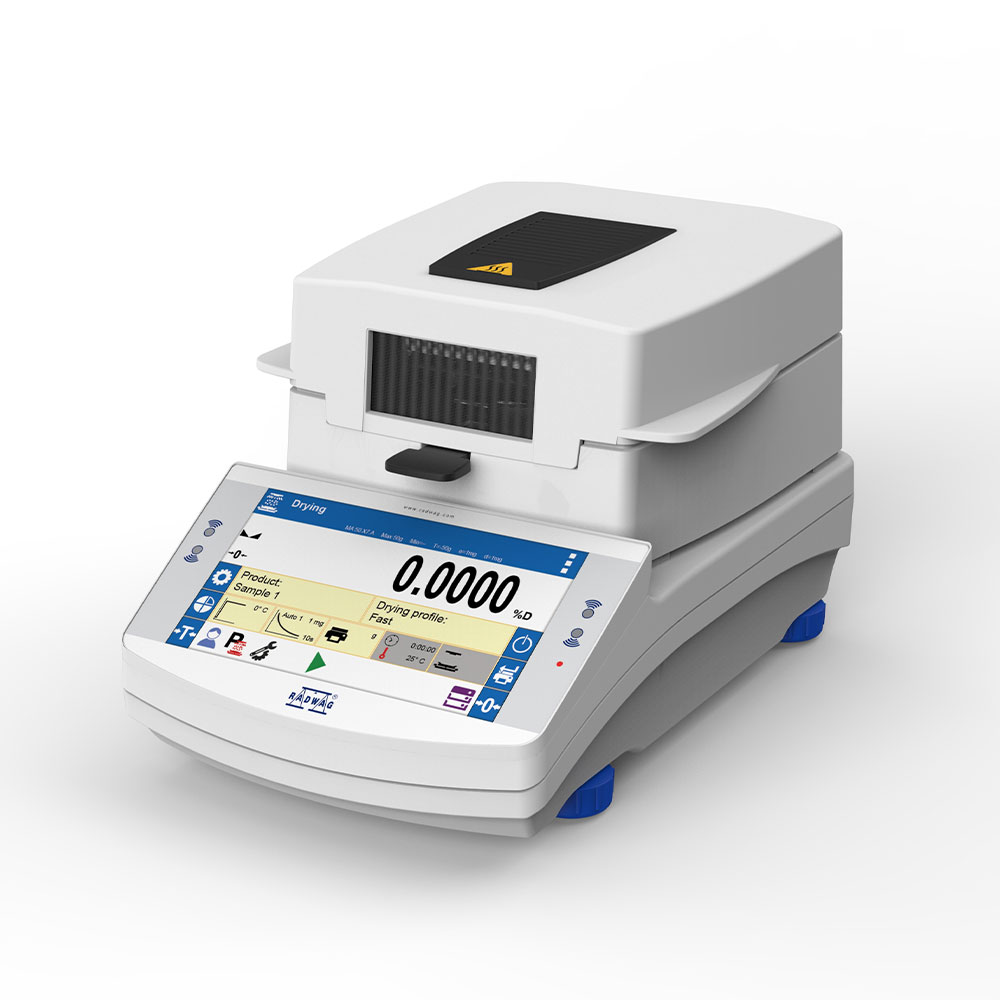

MA 50.X7.IC.A.WH Moisture Analyzer

Free Demo Request
Brochures
More Info

Datasheet

Metrological parameters
Maximum capacity [Max] 50 g
Readability [d] 1 mg
Tare range -50 g
Adjustment internal (automatic)
Maximum sample weight 50 g
Heating module halogen
Moisture content repeatability +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Moisture content readability 0.001%
Drying temperature range Max 250 °C
Physical parameters
Leveling system manual
Display 7″ graphic colour touchscreen
Weighing chamber automatic
Maximum sample height 20 mm
Weighing pan dimensions ø90, h= 8 mm
Packaging dimensions 476×381×346 mm
Net weight 5.3 kg
Gross weight 6.8 kg
Construction
Protection class IP 43
Features of use
Display mode %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
Drying method 4 drying profiles (standard, fast, step, mild)
Finish mode 4 modes (automatic, manual, time-defined, user-defined)
Additional functions sample traceability
Communication interface
Communication interface RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®
Electrical parameters
Power supply 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
Power consumption 6 W
Heating module power 450 W
Environmental conditions
Operating temperature +10 — +40 °C
SOP – metrological tests
Mass indication control External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Internal adjustment For .IC models only, GLP report
External adjustment For all models, GLP report
Drying temperature control One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer)
Moisture content indication control Certified MV Test Set
Adjustment Internal / External adjustment
Drying temperature adjustment Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
