Radwag

PS 4500.X7.M Precision Balance

Free Demo Request
Brochures
More Info

Datasheet

Metrological parameters
Maximum capacity [Max] 4500 g
Minimum load 500 mg
Readability [d] 10 mg
Verification unit [e] 100 mg
Tare range -4500 g
Standard repeatability [5% Max] 5 mg
Standard repeatability [Max] 8 mg
Standard minimum weight (USP) 10 g
Standard minimum weight (U=1%, k=2) 1 g
Linearity ±20 mg
Stabilization time 1.5 s
Adjustment internal (automatic)
OIML Class II
Physical parameters
Leveling system manual
Display 7″ graphic colour touchscreen
Delivery components Balance, weighing pan, weighing pan shield, power supply
Weighing pan dimensions 195×195 mm
Device dimensions 333x206x107 mm
Packaging dimensions 476×381×346 mm
Net weight 4.5 kg
Gross weight 6 kg
Construction
Protection class IP 43
Components and software
Database capacity 7
Features of use Touch-free operation, 2 IR Sensors
Communication interface

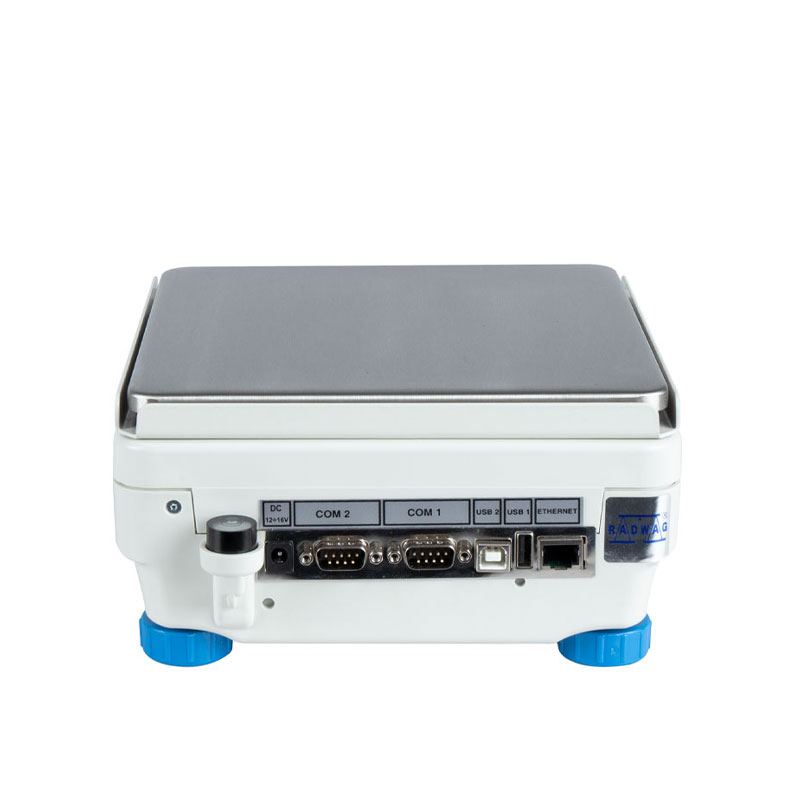

Communication interface 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®
Electrical parameters
Power supply Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance 12 – 15V DC 0.8A max
Power consumption 4 W
Environmental conditions
Operating temperature +10 — +40 °C
Ambient conditions monitoring (option) THBR 2.0 System, THBR BOX, THB P, THB W, THB S
Storage temperature -20 — +50 °C
Relative humidity 40% — 80%
