Metrological parameters
Maximum capacity [Max]	11 g
Minimum load	0.1 mg
Readability [d]	1 µg
Verification unit [e]	1 mg
Tare range	-11 g
Standard repeatability [5% Max]	0.45 µg
Standard repeatability [Max]	2.5 µg
Standard minimum weight (USP)	0.9 mg
Standard minimum weight (U=1%, k=2)	0.09 mg
Permissible repeatability [5% Max]	1.6 µg
Permissible repeatability [Max]	3.5 µg
Linearity	±6 µg
Eccentric load deviation	6 µg
Sensitivity time drift	1×10⁻⁶/Year×Rt
Stabilization time	3.5 s
Adjustment	internal (automatic)
OIML Class	I
Physical parameters
Leveling system	automatic - Reflex Level System

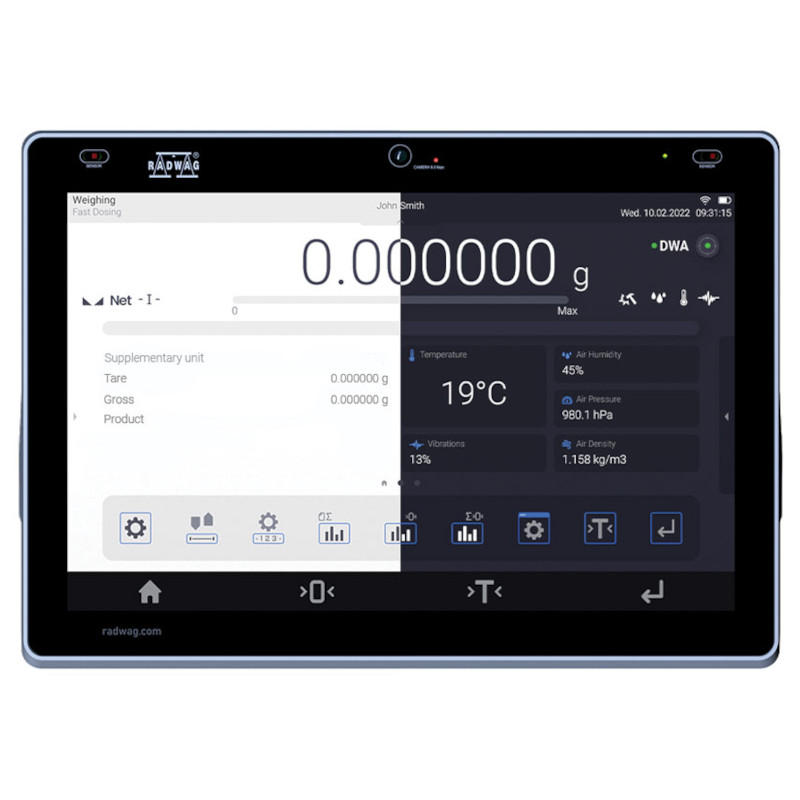

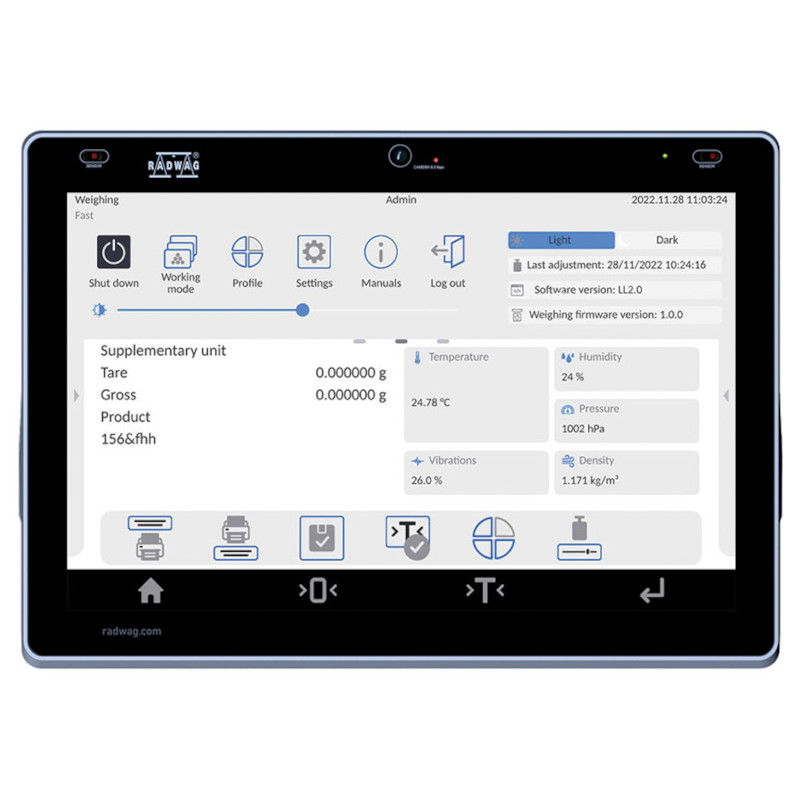

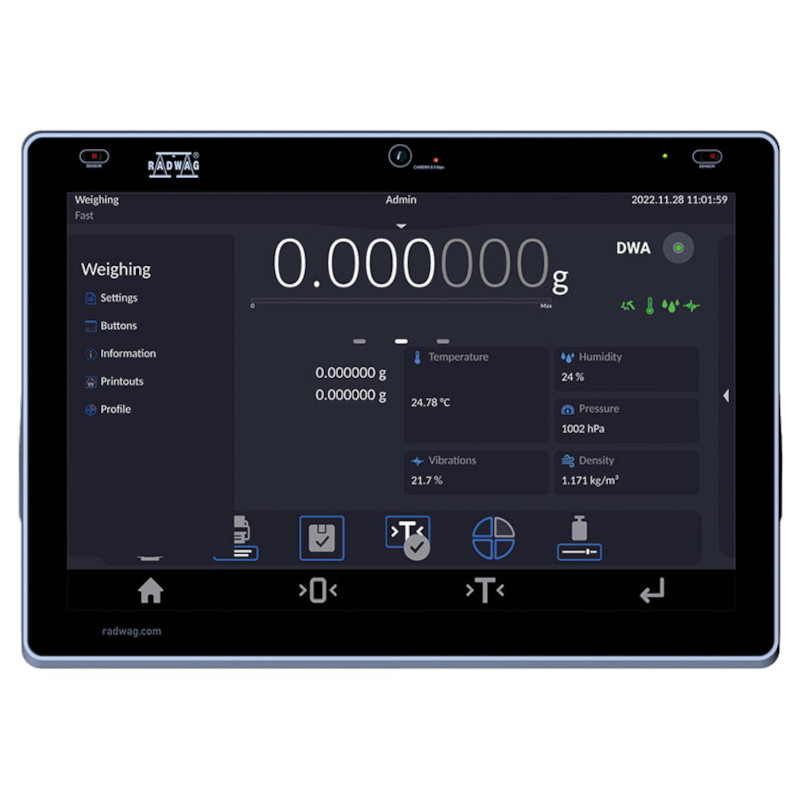

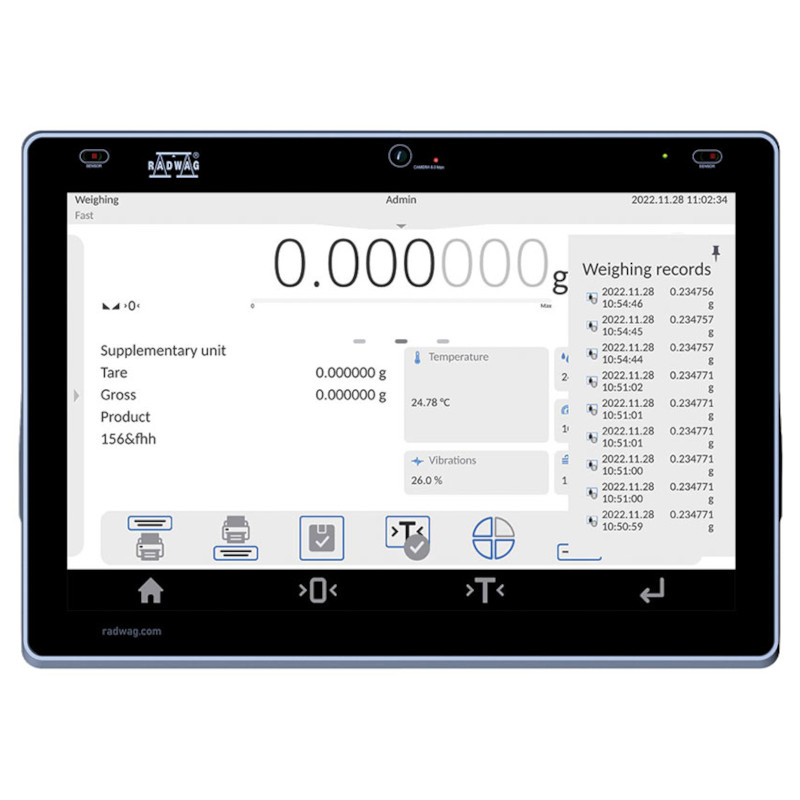

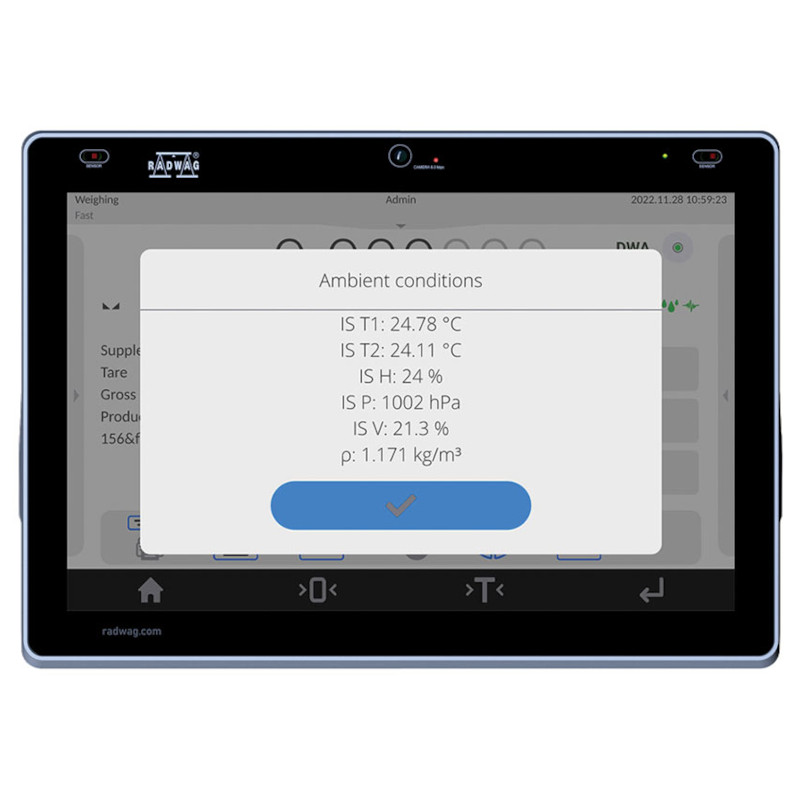

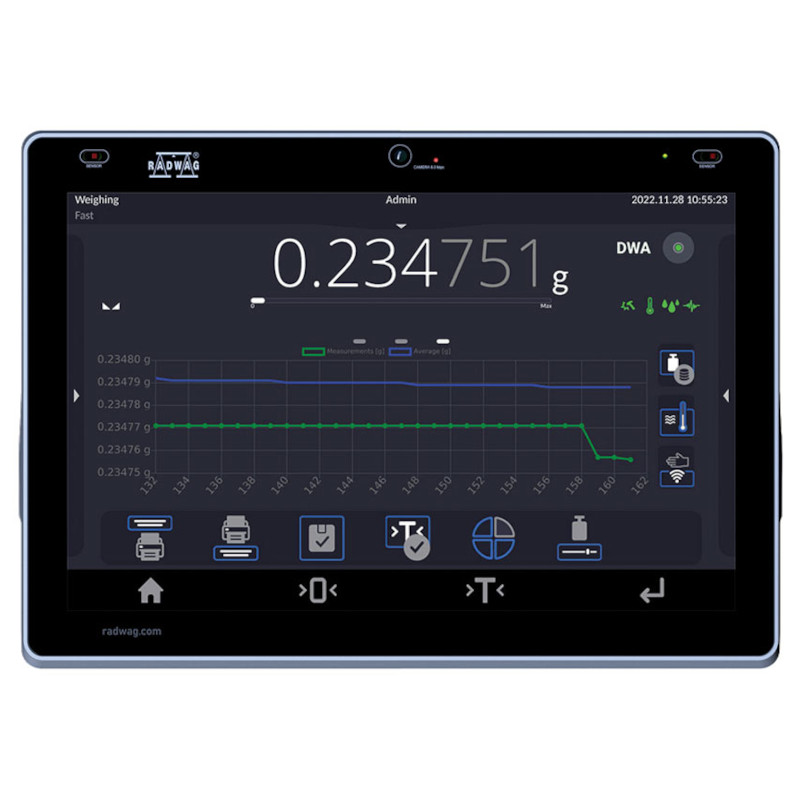

Display	10″ graphic colour touchscreen
Weighing chamber doors	automatic

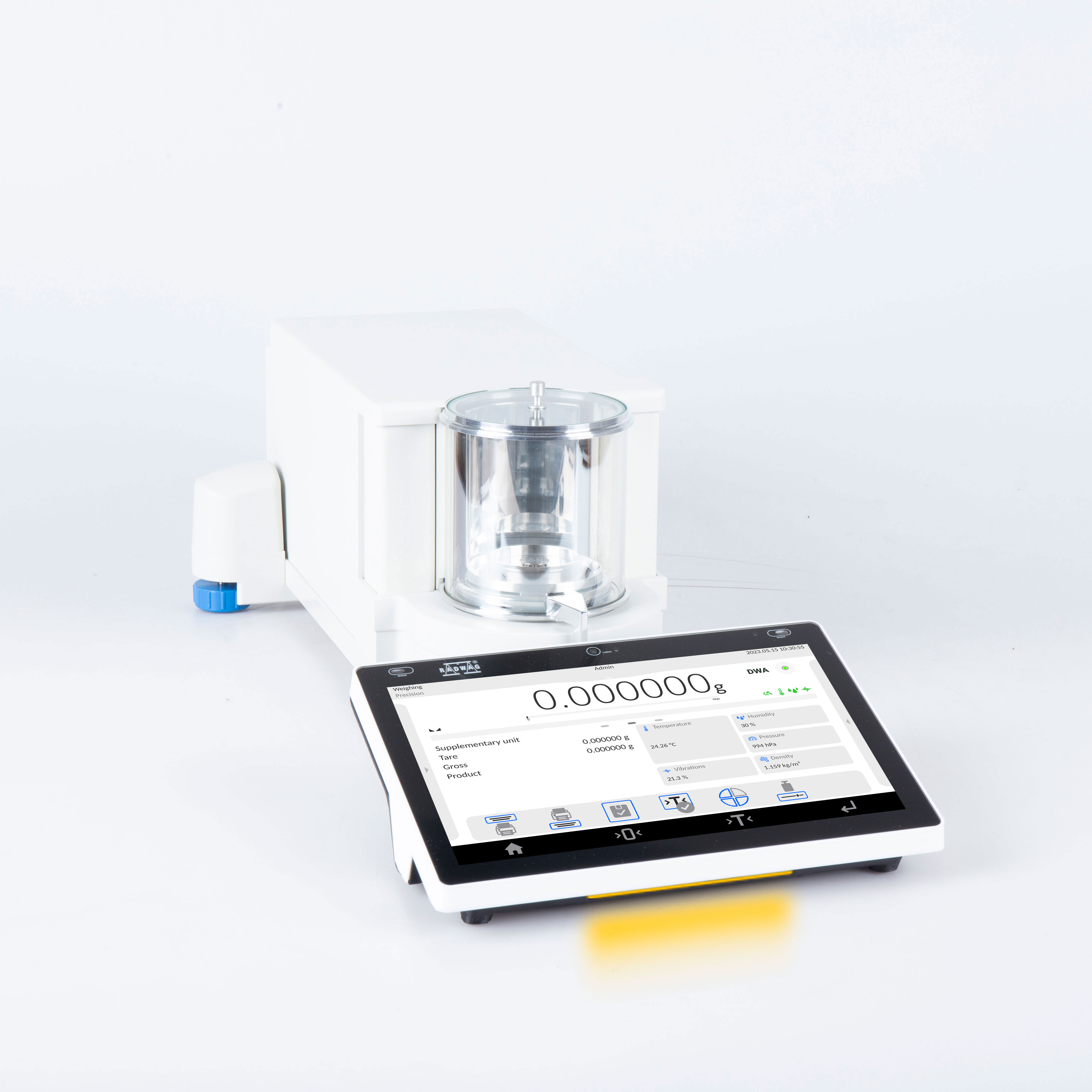

Delivery components	Microbalance, terminal, weighing pan, weighing pan shield, glass lid, power supply, pincette, brush, fabric dust cover.
Weighing chamber dimensions	ø90×90 mm
Weighing pan dimensions	ø16 mm
Packaging dimensions	750×492×595 mm
Net weight	9.1 kg
Gross weight	15.5 kg
Communication interface
Communication interface	2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Electrical parameters
Power supply	Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
Balance	12 – 15V DC 1.4A max*
Environmental conditions
Operating temperature	+10 — +40 °C
Operating temperature change rate	±0.3°C/1h (±1°C/8h)
Relative humidity	40% — 80%
Relative humidity change rate	±1%/h (±4%/8h)
